DKW-8U GT - UHF Wireless Instrument System (Ch. UA17 921.3MHz)
Product Description
The DKW-8U GT from Nady is the perfect entry-level professional UHF wireless system that delivers clear, transparent audio for a variety of singing and speech and wireless instrument applications.

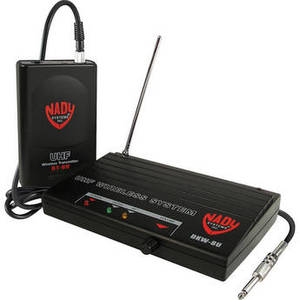

The system consists of a bodypack transmitter and tabletop receiver. The bodypack can accept input from a guitar or bass, a lavaliere microphone or head microphone.
Easy to set up, the system provides all the advantages and freedom of wireless operation, without cumbersome cords.
| System | |
| RF Carrier Frequency Range | UHF 921.3MHz |
| Frequency Stability | +/-0.005%, crystal controlled |
| Modulation | FM +/-20kHz normal |
| Operating Range | Up to 250 feet typical (depending on site conditions) Up to 500+ feet optimum line-of-sight |
| Frequency Response | 50Hz to 16kHz, -3.0dB |
| Dynamic Range | 120dB |
| THD | <1% |
| Receiver | |
| Reception Mode | Mono antenna reception |
| Squelch | Fixed |
| Controls | Volume control |
| Connectors | DC In: 2.1mm barrel Unbalanced Out: 1/4" (6.3mm) jack |
| Display | Power ON Signal AF LEDs |
| Unwanted Signal Rejection | 60dB image and spurious |
| Power Requirements | 12V DC nominal, 500mA |
| Antenna Type | 4" (9.5cm), single section telescopic |
| Dimensions (WxDxH) | 6.9 x 4 x 1.5" (175 x 102 x 38mm) |
| Weight | 7.6 oz (0.2kg) |
| Transmitter | |
| Audio Inputs | 3.5mm locking mini-jack Internally switchable inputs - instrument, headworn microphone, or lavaliere microphone |
| Controls | On/Standby/Off, Input Level Control Internal GT/HM/LT switches |
| RF Power Output | 20mW normal (50mW Maximum allowed by FCC) |
| Harmonic and Spurs | <-50dB |
| Antenna Type | Internal antennas |
| Display | Single LED, flash once "ON", LOW BAT "Steady ON" |
| Battery Type/Approx. Life | 9V Alkaline or NiMH battery 8 to 10 hours (Alkaline) |
| Dimensions (WxDxH) | 4.25 x 2.5 x 1" (108 x 64 x 25mm) |
| Weight | 3.1 oz (88g) without batteries |
