Product Description

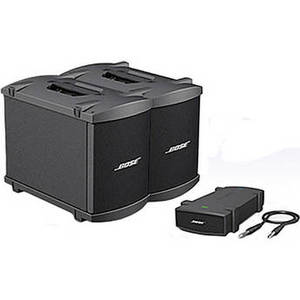

The Bose A1 PackLite Extended Bass Package is intended to enhance the power and bass response of the Bose L1 Compact Line Array Systems. Whether you are a DJ, musician, sound reinforcement specialist or just want to improve your system's bass response, the package includes everything you'll need.
The A1 PackLite amplifier is completely portable, rated at 125 watts @ 8 ohms and is capable of driving up to 2x B1 bass module speakers, or other passive speakers. Two B1 bass modules are included and may be used in conjunction with the B1s included with the Line Array System.
| Rated Power Output | 4 ohms load: 250 watts RMS (1 kHz, 0.1% THD) 8 ohms load: 125 watts RMS (1 kHz, 0.1% THD)Class D Circuitry |
| Signal-to-Noise Ratio | 100 dB (20 Hz to 20 kHz) |
| Voltage Gain | 30 dB |
| Input Sensitivity | 1.15 V (+3.4 dBu) Automatic, balanced/unbalanced level adjust |
| Input Impedance | 55 kOhms unbalanced 110 kOhms balanced |
| Aux Input Clipping Level | 10 Vrms (+22 dBu) |
| Frequency Response | 20 Hz to 20 kHz ± 0.5dB |
| Protection | Self-resetting thermal, output short circuit, and over-current Power 1.8 A, 110 VAC; 0.9 A, 230 VAC 28 A (100-120 VAC) |
| Temperature | 122°F (50°C) |
| Dimensions (WxHxD) | 5.6 x 2.3 x 10.3" (140 x 56 x 258 mm) B1 Bass Module: 10.25 x 15 x 17.75" (26 x 38 x 45 cm) |
| Weight | Weight Amplifier: 3.0 lbs (1.4 kg) B1 Bass Module: 25.1 lbs (11.4 kg) |
