Product Description

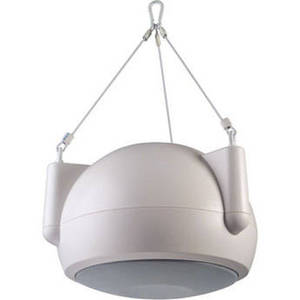

The OPS1W Orbit Pendant Speaker (Off-White) from Bogen is ideal for high ceiling and open space applications. This speaker uses a spiderless driver and one-piece metal alloy cone structure for exceptional articulation in both music and speech. The coaxial driver has wide dispersion of 140° with computer-matched venting system for full bass response. The OCS1 can be used with 16-ohms, 70V and 100V systems for flexibility. Enclosed in a low-resonance cabinet structure that employs an easy to use suspension system, which includes three-suspension cables with attached forged eye-bolts.
| System | |
| Speaker Design | Coaxial Pendant Speaker |
| Power Rating | 100W @ 16 ohms; 32W @ 70V/100V |
| Impedance | Low (16 ohms) / High (70V/100V) |
| Frequency Response | 45-19,000Hz |
| Sensitivity | 89.5dBspl |
| Crossover | Not specified by the manufacturer |
| Enclosure | Heavy-gauge plated steel Fire-rated (94VO) ABS |
| Shielded | Not specified by the manufacturer |
| Drivers | |
| Tweeter | 0.75" (20mm) Polycarbonate Dome |
| Midrange | None |
| Woofer | 6.5" MDT Metal-Alloy Cone (MLS Voice Coil Centering System) |
| General | |
| Connector Type | Terminal Strip |
| Dimensions | 15" (381mm) Diameter x 9.25" (234mm) Depth |
| Mounting Depth | Not applicable |
| Weight | 10 lbs (4.53kg) |
| Color | Off-White |
