Product Description

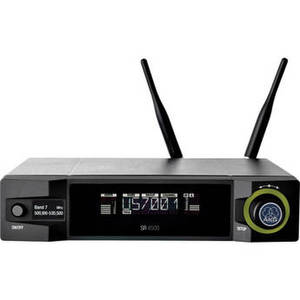

The SR 4500 from AKG is a compact, all-metal, true diversity, UHF wireless receiver, ideal for use as a part of a WMS 4500 wireless system. The receiver has 8 UHF bands that are each 30 MHz wide, providing up to 1200 selectable frequencies. If several frequency bands are used, the receiver allows up to 70 channels to operate simultaneously.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software.
The receiver has a large backlit color display for ease of operation and monitoring. Auto setup, rehearsal, and environmental scan functions make it easy to get up and running on a clear frequency, while tone code squelch and battery status monitoring features let you keep tabs on connected transmitters. An output connector is provided that allows control of external devices. An integrated data interface lets you monitor and control the receiver on a PC HiQnet system via System Architect software.
| Modulation | FM |
| Carrier Frequency | Band 1 / 650 - 680 MHz |
| Modulation | FM |
| Deviation | Rated: 20 kHz at 1 kHz (sine wave) |
| Squelch Threshold | Adjustable between -70 and -100 dBm |
| Audio Frequency Response | 35 Hz - 20 kHz |
| Total Harmonic Distortion (THD) | < 0.3% (at 1 kHz) |
| Signal to Noise Ratio | 120 dBA |
| Connectors | 1 x 3-Pin XLR Output (balanced) 1 x 1/4" TS Output (unbalanced) |
| Current Consumption | 400 mA typical |
| Power Requirement | 12 VDC from external power supply |
| Dimensions (WxHxD) | 7.8 x 1.7 x 7.4" (200 x 44 x 190 mm) |
| Weight | 2.2 lb (972 g) |
