500mm f/6.3 Manual Focus Telephoto T-Mount Lens


From Bower | Model #: BO50063



See more in


500mm f/6.3 Manual Focus Telephoto T-Mount Lens

Product Description

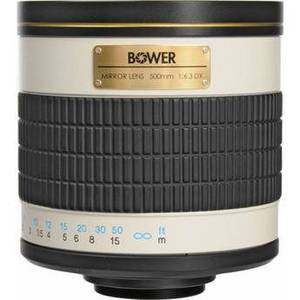

The Bower 500mm f/6.3 Manual Focus Lens is a catadioptric mirror T-mount lens, precision manufactured in South Korea.

When combined with the T-mount to fit your camera system, this mirror lens mounts to camera and works on both "full frame" cameras as well as the "APS-C" style digital SLR cameras.  T-Mounts are available for all the digital SLR systems, as well as for C-mount systems.  However, in every case the fixed f/6.3 aperture is not communicated to the camera body.  As such, you can use the lens in "M" manual exposure mode or "A" aperture-priority mode only.

This lens has a broad diameter and stocky build, making it a bit easier to handle than a normal refractor lens.  It also has a much different rendering of out of focus areas than a normal lens; highlights will be doughnut-shaped rings with more saturation and contrast on the edge of the ring than on the center.

This lens is an ideal candidate for astrophotography use when mounted to a Vixen GP2 Photo Guider (or other motorized equatorial telescope mount).

Performance
Focal Length 500mm
Aperture Maximum: f/6.3
Camera Mount Type T-Mount (T-Thread)
Format Compatibility 35mm Film / Full-Frame Digital Sensor
DSLR (APS-C Sensor)
Angle of View
Minimum Focus Distance 6.1' / 1.86 m
Magnification Not Specified by Manufacturer
Maximum Reproduction Ratio Not Specified by Manufacturer
Optical Design 7 Elements in 6 Groups
Diaphragm Blades Not Specified by Manufacturer
Features
Image Stabilization No
Autofocus No
Tripod Collar No
Physical
Filter Thread Front: 95 mm
Rear: 34 mm
Dimensions (DxL) Approx. 3.86 x 4.69" / 98 x 119 mm
Weight 1.43 lb / 650 g
Warranty Length
USA Warranty Extension
