Product Description

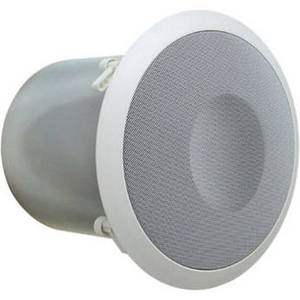

The off-white OCS1 Orbit Ceiling Speaker from Bogen is a 2-way, 6.5" coaxial speaker. It is suitable for various ceiling applications as it can be installed on hard surfaced ceilings, or in suspended ceilings and new construction (with an optional TBCR bracket).
The speaker utilizes a spiderless driver and a one-piece metal alloy cone structure for clear articulation in both music and speech. It features a wide-dispersion coaxial driver, which has a coverage of 140° and a computer-matched venting system for full bass response. The speaker affords the user flexibility as it can be used at 16-ohms, or with 70V or 100V systems and power input selection is chosen by a front-mounted rotary switch located under the removable grille.
The speaker utilizes a spiderless driver and a one-piece metal alloy cone structure for clear articulation in both music and speech. It features a wide-dispersion coaxial driver, which has a coverage of 140° and a computer-matched venting system for full bass response. The speaker affords the user flexibility as it can be used at 16-ohms, or with 70V or 100V systems and power input selection is chosen by a front-mounted rotary switch located under the removable grille.
| System | |
| Speaker Design | Coaxial ceiling speaker |
| Frequency Response | 45 to 19,000 Hz (-10 dB with 16 ohm input) |
| Power Input | 100W @ 16 ohms 3 32W @ 70V / 100V |
| Power Settings | 70V: 32, 16, 8, 4, 2, 1W & 16 ohms 100V: 32, 16, 8, 4, 2W & 16 ohms |
| Coverage Area | 140° |
| Impedance | Low (16 ohms) High (70V / 100V) |
| Sensitivity | 89.5 dB / SPL |
| Enclosure | Heavy-gauge plated steel back can |
| Drivers | |
| Woofer | 6.5" MDT metal-alloy cone (MLS Voice Coil Centering System) |
| Tweeter | 0.75" (20 mm) Polycarbonate dome, coaxially mounted |
| General | |
| Connector Type | 4-Screw snap-lock terminal strip |
| Color | Off-White |
| Cut-Out Size | 10.75" (273 mm) |
| Mounting Depth | 11" (279 mm) minimum |
| Dimensions (Diam. x Depth) | 12.4 x 12" (314 x 305 mm) |
| Weight | 10 lbs (4.53 kg) |
