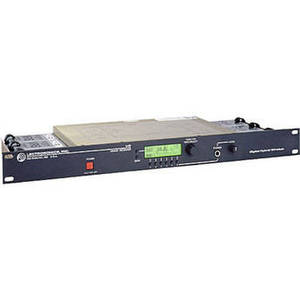

Venue Receiver Master (VRM) (21 & 29)


From Lectrosonics | Model #: LEVRMWB



See more in


Venue Receiver Master (VRM) (21 & 29)

Product Description

From Lectrosonics, the Wideband Venue Receiver Master (VRM) unit is designed for use with the Lectrosonics Venue Wireless System. The system delivers the stability of their patented Digital Hybrid Technology with the convenience of multi-transmitter operation without multiple receivers.

Designed primarily for fixed installation, the system consists of the Venue Receiver Master (VRM) which accommodates up to 6 VRT or VRS receiver modules (sold separately), enabling up to 6 transmitters to be used simultaneously. The VRT and VRS receiver modules feature diversity reception and 256 user selectable UHF frequencies.

Digital Hybrid Technology eliminates the compandor circuit and all associated artifacts while still operating over traditional FM frequencies. In addition to minimal noise, the system is also backward compatible with Lectrosonic analog and Digital Hybrid transmitters. The VRM features 6 discrete audio outputs for each receiver module via 3-pin XLR connectors. Additional features include a comprehensive LCD display, USB and RS-232 ports.

The Lectrosonics Venue Wireless System covers every conceivable necessity for professional multi-transmitter wireless operation. The system will prove worthy for touring, theatrical performances, presentations, and more.

Type of Receiver VRM Master Receiver for VRS or VRT Tuner Modules
RF Carrier Frequency Range Compatible Blocks 21 & 29
Approx. Working Range Not Specified by Manufacturer
Overall Frequency Response 32H to 20kHz (+/- 1dB), overall system
Signal-to-Noise Ratio In Hybrid Mode:
Smart NR Off, No Limiting: 103.5dB
Smart NR Normal, No Limiting: 107.dB
Smart NR Full,No Limiting 108.5dB
Smart NR Off, With Limiting: 108.5dB
Smart NR Normal, With Limiting: 111.5dB
Smart NR Full, With Limiting: 113.5dB
# Of Channels 6 Modules, 2 Compatible Frequency Blocks Per (VRM)
256 frequencies per module
Type of Output(s) 6 - Balanced 3-pin XLR Audio Outputs
Antenna A / B - BNC I/O
USB Port
RS 232 Port
Headphone Monitoring 1/4" TRS Phone with Level Control (Front Panel)
Power Requirements 10 to 18 VDC; 12 Watts max. (1.2 A @ 10 VDC to 0.67A @ 18 VDC)
Battery Type/Approx. Life No
Display LCD: 122 x 32 Graphical Display
Mounting Options 19-Inch Rack Mountable
Antenna Type Coaxial Antennas (not included)
Dimensions 19 x 1.75 x 7.75" 48.26 x 4.45 x 19.67cm (WxHxD)
Weight 4.28 lbs. (1946 g) with 6 VRS modules
4.45 lbs. (2018 g) with 6 VRT modules
