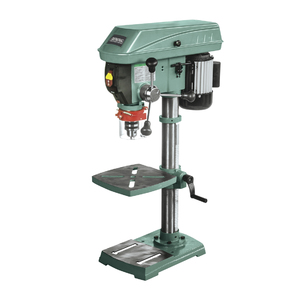

General International 12" Bench top Commercial Variable Speed drill press- 75-010M1

Forced opening line interrupter switch, requires machine restart in case of power failure or circuit interruption. Adjustable spindle tension return spring. Built-in laser pointer. Sturdy design with cast-iron head, base, and table. High-quality bearings for smooth, vibration-free operation. Simple hand lever controlled mechanical variable speed from 500 to 3000 rpm. Digital spindle speed display. 1/3 HP industrial-quality, 120 V motor. Equipped with easy to adjust dual depth stop for complete control of both down stroke depth and upstroke travel. 5/8″ chuck with key & convenient onboard chuck key holder. Easy to use see-through flip-up chuck guard included. Crank-operated rack and pinion table height adjustment.  2 Year Limited Warranty

• Forced opening line interrupter switch, requires machine restart in case of power failure or circuit interruption.
• Adjustable spindle tension return spring.
• MT2 Spindle
• Built in Cross pattern laser system
• Sturdy design with cast iron head, base, and table.
• 15" x 9-5/8" Base size
• 5/8" Drilling Capacity
• 15" Spindle distance to table
• High quality bearings for smooth, vibration free operation.
• Simple hand lever controlled mechanical variable speed from 500 to 3000 rpm.
• Digital spindle speed display.
• 1/3 HP industrial quality, 120V motor.
• Equipped with easy to adjust dual depth stop for complete control of both down stroke depth and upstroke travel.
• 5/8″ chuck with key & convenient on board chuck key holder.
• Easy to use see through flip up chuck guard included.
• Crank operated rack and pinion table height adjustment
• Swing:12’’
• Drilling capacity: 5/8”
• Chuck size: 5/8”
• Spindle travel: 3-1/8”
• Spindle distance to table: 15”
• Spindle distance to base: 21-7/8”
• Table size: 9-1/2" x 9-1/2"
• Column diameter: 2-1/2”
• Spindle speeds: 500 to 3000 rpm (variable)
• Spindle: MT2
• Overall height: 33”
• Base size: 15” x 9-5/8”

Specifications

• Certifications

  • ETL Listed: No
  • UL Listed: Yes
  • CSA Listed: Yes

• Color

  • Color/Finish: green

• Convenience

  • Onboard Key Storage: Yes

• Cord

  • Cord Management: Manual Wrap
  • Cord Type: 14 gauge
  • Cord Length (ft.): 8

• Dimensions

  • Table Dimensions (LxW): 9-1/2" x 9-1/2"
  • Height (in.): 34.125
  • Table Dimensions with Extensions: NA
  • Width (in.): 9.625
  • Length (in.): 15

• General Features

  • Table Movement: Rack and pinion
  • Table Material: Cast iron
  • Spindle Lock: None
  • Spindle Speed: Variable
  • Table Swivel: Yes

• Handles

  • Number of Handles: 3
  • Handle Type: Hand lever

• Handling & Operating

  • 360 deg. Swivel Head: No

• Installation

  • Assembly Required: Assembly Required

• Materials

  • Housing Material: Steel

• Motor-Engine

  • Motor Voltage: 120
  • Amps: 3.1
  • Horsepower: .33
  • Motor/Engine Type: TEFC
  • RPM: 500 - 3000

• Product Overview

  • General Warranty: 2 Years
  • Item Weight (lbs.): 75
  • Swing (in.): 12
  • Soft Start: No
  • Table Tilt (Right and Left): Yes
  • Chuck Size: 5/8 in.
  • Spindle Distance to Base (in.): 21.875
  • Spindle Travel (in.): 3.125
  • Style: Bench
  • Spindle Taper: #2 MT

• Shipping Dimensions

  • length: 28.75
  • height: 11
  • width: 20

• Size

  • Column Diameter (in.): 2.5

• Worklight

  • Number Of Heads: Single Head
