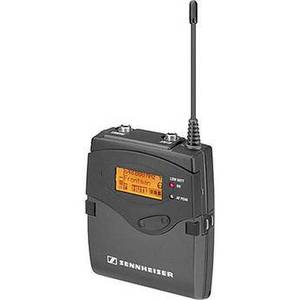

EK 2000 Battery-Powered Diversity Receiver (A: 516 - 558MHz)


From Sennheiser | Model #: SEEK2000A



See more in


EK 2000 Battery-Powered Diversity Receiver (A: 516 - 558MHz)

Product Description

The EK 2000 from Sennheiser is a battery-powered wireless receiver. It's designed to receive wireless audio signals from the SK 2000 beltpack transmitter, the SKP 2000 plug-on transmitter, as well as being backward compatible with all Evolution, 3000, and 5000 Series wireless systems. You can scan for available frequencies with the EK 2000 and synchronize the found frequency with infrared technology to a 2000 Series transmitter.

While the EK 2000 may visually resemble the Sennheiser Evolution EK 100, closer inspection reveals that the 2000 Series offers a lot more power and versatility. The EK 2000 is a diversity system that cleverly uses the output cable of the receiver as a second antenna (diversity systems can really help you avoid drop outs and interference). A headphone output is included that enables you to monitor your signal, as well as have the EK 2000 double as an IFB or remote listening device.

Charging contacts on the sides of the EK 2000 receiver enable you to utilize the L 2015 charger and BA2015 rechargeable batteries (sold separately). The EK 2000 is a really powerful receiver for use on a video camera, in a field audio kit, or for any situation where you need to wirelessly receive audio in an ultra-compact component.

System
Type of System Portable battery-powered UHF receiver
RF Carrier Frequency Range 516 - 558 MHz
72 MHz of Switching Bandwidth
Signal-to-Noise Ratio Line: 120 dBA rms (1 mV RF, Peak Deviation)
Headphones: 90 dBA rms
Frequency Response 25Hz - 20KHz
# Of Channels 2,880
Receiver
Type of Receiver Portable Frequency Agile UHF
Type of Outputs Locking Mini-Plug
Headphone Monitoring Yes, Separate Headphone Output
Power Requirements 2 AA Batteries (2 x 1.5V)
Features contact points for rechargeable battery system
Battery Type/Approx. Life 8 Hours
Display Back-lit Display
Mounting Options Camera-Mountable Receiver
Belt-Clip on Beltpack Transmitter
Antenna Type Fixed Whip
Housing Metal (inc. battery doors)
Dimensions 3.2 x 2.5 x 0.9" (82 x 64 x 24 mm)
Weight 7.05 oz (200 g)
