Product Description

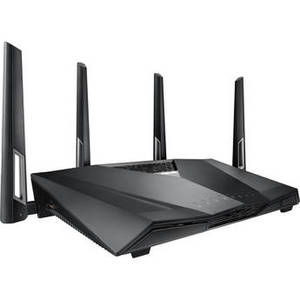

Certified for use on Comcast XFINITY and Spectrum, the ASUS CM-32 AC2600 Wireless Cable Modem Router combines a DOCSIS 3.0-compatible cable modem and 802.11ac Wi-Fi router in a single, easy-to-manage device that lets you avoid monthly modem rental fees.
The CM-32 implements DOCSIS 3.0 to bond 32 parallel channels to push downstream bandwidth to 1372 Mbps. Eight upstream channels deliver peak throughput of 245 Mbps to provide plenty of bandwidth to broadcast your own content.
The 802.11ac Wi-Fi is spread across dual bands as well as four antennas. There's 1734 Mbps of bandwidth on the 5 GHz band while the 2.4 GHz band provides 800 Mbps of bandwidth. MU-MIMO support improves wireless performance across multiple devices, while ASUS AiRadar beamforming technology focuses signals to improve reception at greater distances.
The CM-32 will work with Comcast XFINITY and Spectrum networks right out of the box. The CM-32 is also certified for legacy Charter and Time Warner Cable networks.
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz |
| Number of Antennas | 4 |
| MU-MIMO Support | |
| WLAN Mode | 802.11ac |
| Sensitivity | |
| Antenna Gain | |
| Transmit Power | |
| Supported Protocols | IPv4 IPv6 |
| Antenna Placement | External |
| GSM 2G | |
| GSM 3G/3.5G | |
| Interface | |
| Ports | 1 x Ethernet (RJ45) (Uplink) 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2 x 480 Mb/s USB Type-A 1 x RF Coax |
| USB Sharing Support | |
| Performance | |
| Throughput | 2.4 GHz: 800 Mb/s 5 GHz: 1734 Mb/s |
| VPN Throughput | |
| Security | |
| Guest Network Support | |
| Wireless Security | WEP, WPA, WPA2 |
| Hardware | |
| RAM | |
| Storage Capacity | |
| Processor | |
| Memory Card Slots | |
| Supported File Systems | |
| Display | |
| Supported IEEE Standards | |
| DOCSIS Support | 3 |
| Electrical | |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 19 VDC at 3.42 A |
| Power Consumption | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| General | |
| IP Rating | |
| Certifications | |
| Dimensions | 11.81 x 7.4 x 2.36" / 30 x 18.8 x 6 cm |
| Weight | 2.09 lb / 0.95 kg |
