EA8300 Max-Stream AC2200 MU-MIMO Smart Wi-Fi Router


From Linksys | Model #: LIEA8300



See more in

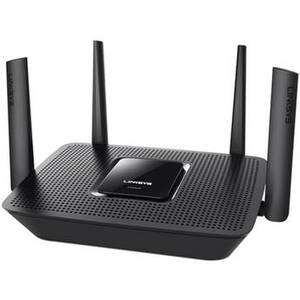

EA8300 Max-Stream AC2200 MU-MIMO Smart Wi-Fi Router

Product Description

Supercharge your Wi-Fi with the EA8300 Max-Stream AC2200 MU-MIMO Smart Wi-Fi Router from Linksys. This tri-band router supports a single 2.4 GHz frequency and dual 5 GHz frequencies offering enhanced Wi-Fi connectivity, and with built-in MU-MIMO or multiple user, multiple-input and multiple-output technology the EA8300 router provides four separate data streams to your wireless devices. Combine MU-MIMO with integrated Beamforming technology, which reduces interference by focusing the wireless signal, and you have a solid, reliable wireless connection for your tablets, smartphones, laptops, and more.

In addition to enhanced wireless connectivity, you can plug Ethernet-enabled devices such as media players, game consoles, and more to any of the four Gigabit Ethernet ports. Alongside the Ethernet ports you will find one USB 3.0 port to connect USB-compatible external storage devices which adds storage and simplifies file sharing throughout the entire network. Once the network is up and running, you can download the Linksys Smart Wi-Fi app available for both iOS and Android devices to manage and monitor your network anytime, anywhere.
Wireless
Wireless Frequency Bands Not Specified by Manufacturer
Number of Antennas 4
MU-MIMO Support
WLAN Mode 802.11ac
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols
Antenna Placement External
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x 5 Gb/s USB Type-A
1 x Ethernet (RJ45) (Uplink)
4 x Ethernet (RJ45)
USB Sharing Support
Performance
Throughput 2.4 GHz: 400 Mb/s
5 GHz: 867 Mb/s
VPN Throughput
Security
Guest Network Support
Wireless Security WEP, WPA, WPA2
Hardware
RAM 256 MB
Storage Capacity 256 MB
Processor 716 MHz Quad-Core
Memory Card Slots
Supported File Systems HFS+, NTFS, FAT
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC at 2 A
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 8.4 x 6.4 x 2.2" / 213.7 x 161.8 x 54.8 mm
Weight 1.3 lb / 608 g
