WT-5805 Wireless 64-Channel UHF Space-Diversity Receiver (Band F01: 636 to 666)
Product Description

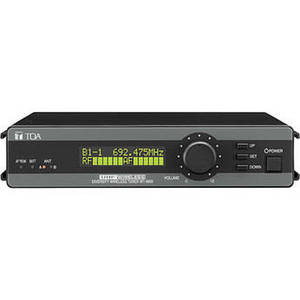

The TOA WT5805 is a wireless 64-channel UHF space-diversity receiver designed for use with the TOA 5000 series wireless microphone system. The receiver features a half-rack space or surface mounted unit that features 64 UHF selectable frequencies, automatic channel detection, radio frequency scan (RF check), an intuitive control panel and a large LCD. Balanced XLR and unbalanced 1/4" phone connections are located on the rear. BNC antenna inputs and outputs are provided, and the receiver may be used for distributing radio signal to additional receivers.
| Type of Receiver | Space-diversity UHF |
| RF Carrier Frequency Range | 636 to 666 MHz |
| Overall Frequency Response | 100 Hz to 15 kHz (�3 dB) |
| Signal-to-Noise Ratio | Over 110 dB |
| # Of Channels | 64 |
| Type of Output(s) | 1 x XLR 3-pin balanced 1 x 1/4" unbalanced |
| Headphone Monitoring | No |
| Power Requirements | 12 VDC, 250 mA |
| Display | LCD |
| Mounting Options | MB-WT3 rackmount kit |
| Antenna Type | Internal |
| Dimensions (W x H x D) | 8.26 x 1.73 x 8.07" / 210 x 44 x 205.1 mm |
| Weight | 1.5 lb / 0.7 kg |
