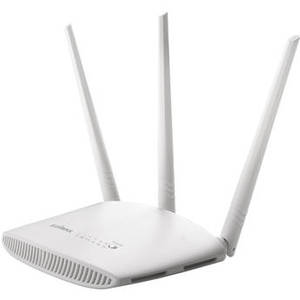

BR-6208AC V2 Wireless-AC750 Dual-Band Fast Ethernet Router


From EDIMAX Technology | Model #: EDBR6208ACV2



See more in


BR-6208AC V2 Wireless-AC750 Dual-Band Fast Ethernet Router

Product Description

With the BR-6208AC V2 Wireless-AC750 Dual-Band Fast Ethernet Router from Edimax you can take advantage of enhanced wireless data speeds of up to 750 Mbps making it easy to stream multimedia content, quickly transfer large files, and more. This router supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies allowing more bandwidth intensive tasks to be allocated to the less congested 5 GHz frequency. In addition to dual-band connectivity, users can also take advantage of VPN support for secure access to your home network from virtually anywhere you have a network connection.

Setup and configuration of this Edimax Router is simple thanks to Smart iQ Setup eliminating the need for installation software. Plug in the router, use your Web browser to access the iQ Setup page and begin accessing the Internet. Once configured, iQoS makes it easy to navigate the often-complicated Quality of Service settings within the router. By doing so you can manage network resources to ensure game consoles, video streaming devices, VoIP applications, and other bandwidth intensive tasks have the network resources needed to function smoothly.

In addition to enhanced wireless support, this router comes equipped with three Fast Ethernet LAN ports and a single Fast Ethernet WAN port offering a reliable wired connection option.
Wireless
Wireless Frequency Bands Not Specified by Manufacturer
Number of Antennas 3
MU-MIMO Support
WLAN Mode
Sensitivity -51 to -85 dBm
Antenna Gain
Transmit Power 12 to 18 dBm
Supported Protocols
Antenna Placement
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
3 x Ethernet (RJ45)
1 x 10/100 Mb/s Ethernet (RJ45)
USB Sharing Support
Throughput
VPN Throughput
Security
Guest Network Support
Wireless Security WEP, WPA, WPA2
Hardware
RAM 64 MB
Storage Capacity 16 MB
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power
DC Input Power 5 VDC at 1.5 A
Power Consumption
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature
Operating Humidity 10 to 90%
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 6.3 x 4.5 x 1.2" / 160 x 115 x 31 mm
Weight 6.0 oz / 170 g
