ACX 300 Action Camera


From Minox | Model #: MIACX300WFAC



See more in


ACX 300 Action Camera

Product Description

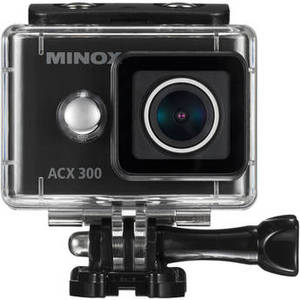

The Minox ACX 300 Action Camera packs advanced features into a stylish, compact body for your outdoor, underwater, leisure, vlogging, filmmaking, and various other adventures. Capture everything in an immersive 150° ultra-wide-angle view in high resolution.

The ACX 300 has a 12MP image sensor and a 7-element lens, and records in 3K resolution at 24 fps, Full HD 1080p at up to 60 fps, and 720p at up to 120 fps for slow-motion playback, all with audio and built-in, gyro-sensor digital image stabilization that compensates for camera shake. It also captures 12MP photos and time-lapse photography. Photos can also be taken in your choice of 8, 5, and 3MP for smaller file sizes. Furthermore, insert the camera into the included waterproof case and dive right in as far as 98 ft underwater. Everything is recorded to microSDHC cards up to a 32GB, sold separately.

A 2" TFT LCD on the rear lets you set up and review your shots, as well as access camera settings. The camera also comes with an iOS/Android mobile app (free download) that allows you to monitor your recordings remotely in real-time, play back recordings, start/stop recording, take photos, and perform many of the other camera functions right from your phone or tablet. For example, with the camera mounted on a helmet, selfie-stick, or other support gear, you'll be able to view the captured image live on your mobile device. The camera connects to the app wirelessly via built-in Wi-Fi.

A wrist-wearable remote control is also included that allows you to start/stop recording and take photos. The remote control is rain-proof and features an LED indicator that confirms whether the camera is recording or not so that you know the status while the camera is at a distance. Among the other included accessories, you'll also find curved and flat surface mounts for attaching the camera to pretty much any object. The ACX 300 is powered by a supplied lithium-ion battery that runs approximately 90 minutes with Wi-Fi turned off, and 70 minutes with Wi-Fi on. The camera offers a Micro-HDMI monitoring output and a Micro-USB computer interface and battery charging port.
Camera
Sensor 1-Chip 1/2.3" CMOS
Color Filter Bayer
Sensor Resolution 12 MP
Effective Pixels
Lens Mount
Optics
Focal Length 3.25mm
35mm-Equivalent Focal Length
Maximum Aperture f/2.8
Lens Elements 7
Minimum Focusing Distance 19.7" / 50.0 cm
Fixed Focus Yes
Angle of View Ultra Wide: 150°
Recording
System Not Specified by Manufacturer
Recording Media x microSD/HC
Recording Time Not Specified by Manufacturer
Video Format 2880 x 2160p at 24 fps (MOV via H.264)
1920 x 1080p at 30/60 fps (MOV via H.264)
1280 x 720p at 60/120 fps (MOV via H.264)
Aspect Ratio Not Specified by Manufacturer
Slow Motion Mode 120 fps Recorded at 1280 x 720p
Still Image Resolution JPEG: 12 Megapixel
Display
Display Type LCD
Screen Size 2"
Resolution 960 x 240
Status Display No
Exposure Control
Shutter Speed 1/30 - 1/2000 Seconds (Video)
Photo ISO Range Not Specified by Manufacturer
Video ISO Range Not Specified by Manufacturer
Exposure Modes Modes: Auto
Interval Recording Not Specified by Manufacturer
Features
Image Stabilization Digital
Scene Modes Not Specified by Manufacturer
Waterproof Depth Rating 98.0' / 30.0 m (Waterproof Housing)
IP Rating IP68
Lux
White Balance Modes Auto
Creative Effects Not Specified by Manufacturer
Built-In Mic Yes
Built-In Speaker Not Specified by Manufacturer
Built-In Light/Flash Light - No
Flash - No
Wi-Fi Yes, 802.11b/g/n
Accessory Shoe None
Tripod Mount None
Input/Output Connectors
Inputs 1 x USB Micro-B
Outputs 1 x Micro-HDMI (Type D)
Microphone Input No
Headphone Jack No
General
Battery Rechargeable Lithium-Ion Battery Pack, 3.7 VDC, 1000 mAh
Charging Method USB
Charging Time
Power Adapter None
Power Consumption
Operating Temperature
Dimensions (W x H x D) 2.4 x 1.7 x 1.2" / 6.2 x 4.3 x 3.0 cm
Weight 2.65 oz / 75 g
