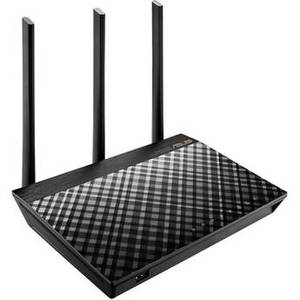

RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router


From ASUS | Model #: ASRTAC66UB1



See more in


RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router

Product Description

Transfer large files quickly, stream multimedia content, and much more with the RT-AC66U B1 Wireless-AC1750 Dual-Band Gigabit Router from ASUS. This router operates on both the 2.4 GHz and 5 GHz frequencies allowing more data intensive tasks to be allocated to the less congested, faster 5 GHz frequency. In addition to dual-band functionality, the RT-AC66U B1 supports 802.11a/b/g/n/ac Wi-Fi network standards with data transfer rates of up to 1750 Mbps. If a wired connection is needed, this ASUS router comes equipped with four Gigabit Ethernet LAN connections as well as one USB 3.0 port and one USB 2.0 port to connect USB peripherals such as external hard drives directly to the router.

Inside the ASUS RT-AC66U B1 is a dual-core processor designed to ensure this router can handle a heavy workload such as streaming multimedia content, online gaming, VoIP devices, and more with hardly any network lag. The three external antennas ensure the wireless connection can reach long distances and with built-in MIMO and beamforming technologies users benefit from multiple connections beamed directly to connected devices. Configuring and managing your ASUS router has been greatly simplified thanks to the ASUS Router App giving a network administrator the ability to manage network traffic, diagnose connection issues, and more.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 3
MU-MIMO Support 3 x 3
WLAN Mode 802.11ac
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols IPv4
IPv6
Antenna Placement External
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s USB Type-A
1 x 480 Mb/s USB Type-A
USB Sharing Support
Performance
Throughput 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s
VPN Throughput
Security
Guest Network Support
Wireless Security WEP, WPA, WPA2
RAM
Storage Capacity
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power 110 to 240 VAC, 50 / 60 Hz
DC Input Power 19 VDC at 1.75 A
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 8.6 x 5.8 x 1.8" / 218 x 148 x 45 mm
Weight 1.5 lb / 660.0 g
