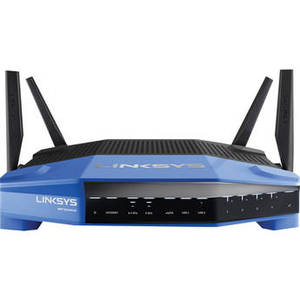

WRT3200ACM Dual-Band Wireless-AC3200 Gigabit Router
Product Description
With a 1.8 GHz enterprise grade dual-core processor the WRT3200ACM Dual-Band Wireless-AC3200 Gigabit Router from Linksys has enough processing power to handle multiple data streams simultaneously. Take advantage of enhanced wireless network functionality as the WRT3200ACM supports wireless 802.11a/b/g/n/ac networking standards and functions on both the 2.4 GHz and 5 GHz frequencies. With simultaneous dual-band connectivity you benefit from data transfer rates up to 3.2 Gbps, which is perfect for streaming HD content, online gaming, and more. This router also supports Tri-Stream 160 MHz connectivity accompanied by MU-MIMO technology offering three separate data streams for a total bandwidth of up to 2.6 Gbps.
The WRT3200ACM router features four detachable external antennas, four Gigabit Ethernet ports, one eSATA port, one USB 2.0 port, and one USB 3.0 port. The four upgradable antennas provide expansive wireless networking connectivity while the four Gigabit Ethernet ports ensure a fast, reliable, wired networking option. Additionally, the integrated eSATA port, USB 2.0 and USB 3.0 ports make it simple to attach peripherals such as external hard drives.
For enhanced networking functionality the WRT3200ACM comes equipped with Smart Wi-Fi software giving you the ability to monitor nearly every aspect of your network. Whether on a PC or mobile device you can monitor your network, set parental controls, restrict network access, and more. This router is also open-source ready giving advanced users the ability to modify the router including the option to take advantage of available open source firmware.
The WRT3200ACM router features four detachable external antennas, four Gigabit Ethernet ports, one eSATA port, one USB 2.0 port, and one USB 3.0 port. The four upgradable antennas provide expansive wireless networking connectivity while the four Gigabit Ethernet ports ensure a fast, reliable, wired networking option. Additionally, the integrated eSATA port, USB 2.0 and USB 3.0 ports make it simple to attach peripherals such as external hard drives.
For enhanced networking functionality the WRT3200ACM comes equipped with Smart Wi-Fi software giving you the ability to monitor nearly every aspect of your network. Whether on a PC or mobile device you can monitor your network, set parental controls, restrict network access, and more. This router is also open-source ready giving advanced users the ability to modify the router including the option to take advantage of available open source firmware.
Wireless | |
Wireless Frequency Bands | 2.4 GHz, 5 GHz |
Number of Antennas | 4 |
MU-MIMO Support | |
WLAN Mode | 802.11ac |
Sensitivity | |
Antenna Gain | |
Transmit Power | |
Supported Protocols | |
Antenna Placement | External |
GSM 2G | |
GSM 3G/3.5G | |
Interface | |
Ports | 1 x 5 Gb/s USB Type-A 1 x Combo (USB/eSATA) 1 x Ethernet (RJ45) (Uplink) 4 x Ethernet (RJ45) |
USB Sharing Support | |
Performance | |
Throughput | 2.4 GHz: 600 Mb/s 5 GHz: 2600 Mb/s |
VPN Throughput | |
Security | |
Guest Network Support | |
Wireless Security | WPA, WPA2 |
Hardware | |
RAM | |
Storage Capacity | |
Processor | 1.8 GHz Dual-Core |
Memory Card Slots | |
Supported File Systems | HFS+, NTFS, FAT |
Display | |
Supported IEEE Standards | |
DOCSIS Support | |
Electrical | |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC at 3 A |
Power Consumption | |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 10 to 80% |
Storage Humidity | |
Operating Altitude | |
Storage Altitude | |
General | |
IP Rating | |
Certifications | |
Dimensions | 9.68 x 7.63 x 2.04" / 245.87 x 193.8 x 51.82 mm |
Weight | 28.16 oz / 798.32 g |
