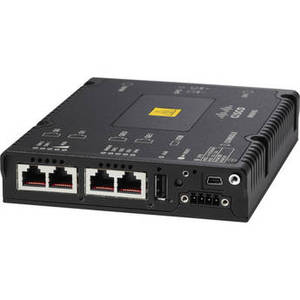

809 Industrial Integrated Services Router


From Cisco | Model #: CIR809GLTENA



See more in


809 Industrial Integrated Services Router

Product Description

Designed to be a component of the Internet of Things (IoT), the 809 Industrial Integrated Services Router from Cisco works with a variety of wireless technologies including 4G LTE, 3.7G, 3.5G, 3G, and 2G offering wireless connectivity to a wide range of devices. In addition to enhanced wireless connectivity, this device comes equipped with built-in GPS tracking capabilities designed to support real-time location tracking for various IoT applications. Once installed, network administrators can implement a variety of QoS policies, some of which have the ability to support 4G multiple bearers. Inside this 809 Series Router you will find 2GB of DRAM and 8GB of flash memory to ensure smooth operation. On the exterior of the router are two Gigabit Ethernet ports, along with dedicated LED indicators depicting system status, WWAN status, and speed and link status for both Gigabit Ethernet ports. In addition to Gigabit Ethernet connectivity, this Cisco router comes equipped with two serial ports supporting SCADA, DNP3, T101-104, Raw Socket TCP and UDP, and SLIP protocols.
Wireless
Wireless Frequency Bands Not Specified by Manufacturer
Number of Antennas
MU-MIMO Support
WLAN Mode
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols
Antenna Placement
Cellular
GSM 2G GSM, GPRS, EDGE: 850, 900, 1800, 1900 MHz
GSM 3G/3.5G UMTS, HSPA+: 850, 900, 1700, 1900, 2100 MHz
4G LTE LTE: 2, 4, 13, 17, 25 Bands
Interface
Ports 1 x mini-USB
2 x Ethernet (RJ45)
USB Sharing Support
Performance
Throughput 100 Mb/s
VPN Throughput
Guest Network Support
Wireless Security
Hardware
RAM 2 GB
Storage Capacity 8 GB
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power
DC Input Power
Power Consumption 29 W
Environmental
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude 10,000' / 3048 m
Storage Altitude
General
IP Rating IP30
Certifications
Dimensions 1.15 x 5.05 x 6.27" / 29.21 x 128 x 159.2 mm
Weight 2.31 lb / 1.05 kg
