Summon 3-Axis Handheld Stabilizer with Built-In 4K Camera


From Feiyu | Model #: FEFES4K



See more in

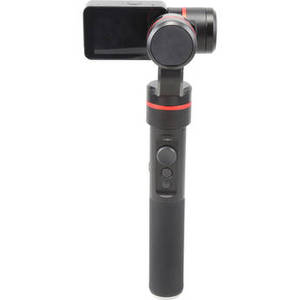

Summon 3-Axis Handheld Stabilizer with Built-In 4K Camera

Product Description

Combining a compact 4K camera and handheld 3-axis motorized gimbal into a single unit, the Feiyu SUMMON is an all-in-one solution for capturing stabilized handheld footage. The camera, which utilizes a 1/2.3" 16MP sensor, supports UHD 4K video up to 25 fps, 2.7K video up to 30 fps, 1080p at 60 fps, and 720p at 240 fps, not to mention up to 16MP still photos. Whether you're shooting video or taking photos, the unit uses Feiyu's proven 3-axis gimbal stabilization technology to keep the camera isolated from unwanted jitters and shakes, resulting in smooth, floating camera movements. Like many action cameras on the market, SUMMON's camera offers interval capture for time-lapse recording, but steps things up by allowing you to use the gimbal motors to add pan or tilt motion to your shots.

SUMMON's body and structural parts are all constructed out of metal for durable and heat dissipation, with a silicone grip on the handle provided comfortable and confident handling. For framing and monitoring your shots while operation, there is a built-in 2" LCD screen located on the back of the camera. Menu navigation, settings control, and gimbal operation are performed using a joystick and function button located on the handle, with a record button also present. The device also has built-in Wi-Fi that enables you to connect to a smartphone running the FY APP for remote monitoring and control, as well as sharing your photos and videos to social media sites.

The gimbal is powered using a single 3000mAh 22650 lithium-ion battery that provides approximately three hours of constant shooting at 1080p resolution. The battery is charged via a USB port on the handle. When you want a locked-down shot rather than going handheld, you can mount the gimbal onto a tripod or other support device using one of two 1/4"-20 threaded holes.
Camera
Sensor 1/2.3"
Optics
Maximum Aperture f/2.8
Lens Elements 7
Angle of View  95°
Sensor
Pixel Gross
Focal Length
35mm-Equivalent Focal Length
Maximum Aperture
Minimum Focusing Distance
Fixed Focus
Angle of View
Recording
Recording Media x microSD/HC/XC
Video Format
Still Image Resolution JPEG: 16 Megapixel, 4608 x 3456 (4:3)
JPEG: 12 Megapixel, 4000 x 3000 (4:3)
JPEG: 8 Megapixel, 3264 x 2448 (4:3)
JPEG: 5 Megapixel, 2592 x 1944 (4:3)
Display
Display Type LCD
Screen Size 2"
Resolution 320 x 240
Aspect Ratio 4:3
Exposure Control
Photo ISO Range
Video ISO Range
Streaming ISO Range
Interval Recording 3 Second
5 Second
10 Second
30 Second
60 Second
Burst Photo 10
Self-Timer 2 Sec
Features
IP Rating
White Balance Modes Auto
Cloudy
Daylight
Fluorescent H
Tungsten
Built-In Mic Yes
Built-In Light/Flash Light - No
Flash - Yes
Wi-Fi Yes, 802.11b/g/n
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1 x USB Micro-B
1 x Micro-HDMI (Type D)
General
Menu Languages English
French
German
Portuguese
Simplified Chinese
Spanish
Traditional Chinese
Battery Rechargeable Lithium-Ion Battery Pack, 3000 mAh
Max Runtime: 3 Hours per Charge
Charging Method USB
Power Adapter 3.7 - 4.2 VDC
Operating Temperature 14 to 122°F / -10 to 50°C
Humidity: 80%
Dimensions (W x H x D) 3.8 x 9.1 x 3.2" / 9.7 x 23.2 x 8.1 cm
Weight 12.35 oz / 350 g Not including battery
