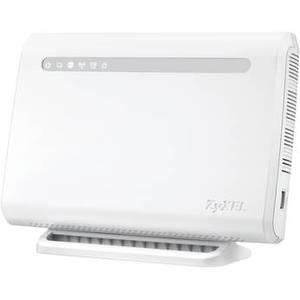

NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router
Product Description
With built-in MU-MIMO technology, the NBG6815 AC2200 MU-MIMO Dual-Band Wireless Gigabit Router from ZyXEL offers multiple data streams providing data transfer rates of up to 2200 Mbps. In addition to MU-MIMO technology, this router supports the 802.11a/b/g/n/ac networking standards and operates on both the 2.4 GHz and 5 GHz frequencies. Setup and configuration of this ZyXEL router is simple thanks to the mobile-friendly setup wizard that guides you through the entire setup process. ZyXEL even offers a free mobile application from which users can configure settings and manage other aspects of the network while on-the-go. If a wired connection is needed, the NBG6815 comes equipped with four Gigabit Ethernet ports as well as two USB 2.0 ports to connect devices like USB hard drives to the network. Once configured, ZyXEL's StreamBoost technology helps to manage network bandwidth to ensure applications such as video streaming, online gaming, and other bandwidth intensive tasks receive the necessary network resources to operate smoothly.
Wireless | |
Wireless Frequency Bands | Not Specified by Manufacturer |
Number of Antennas | |
MU-MIMO Support | |
WLAN Mode | 802.11ac |
Sensitivity | |
Antenna Gain | |
Transmit Power | |
Supported Protocols | IPv6 |
Antenna Placement | Internal |
GSM 2G | |
GSM 3G/3.5G | |
Interface | |
Ports | 1 x Ethernet (RJ45) (Uplink) 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 2 x 480 Mb/s USB Type-A |
USB Sharing Support | Yes |
Performance | |
Throughput | 2.4 GHz: 450 Mb/s 5 GHz: 1733 Mb/s |
VPN Throughput | |
Security | |
Guest Network Support | Yes |
Wireless Security | WPA, WPA2 |
Hardware | |
RAM | 256 MB |
Storage Capacity | |
Processor | 700 MHz |
Memory Card Slots | |
Supported File Systems | |
Display | |
Supported IEEE Standards | |
DOCSIS Support | |
Electrical | |
AC Input Power | |
DC Input Power | 12 VDC at 3 A |
Power Consumption | 30 W |
Environmental | |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -22 to 158°F / -30 to 70°C |
Operating Humidity | 10 to 90% |
Storage Humidity | 10 to 95% |
Operating Altitude | |
Storage Altitude | |
General | |
IP Rating | |
Certifications | |
Dimensions | 10.25 x 7.17 x 3.2" / 260.4 x 182 x 81.2 mm |
Weight | 1.28 lb / 578 g |
