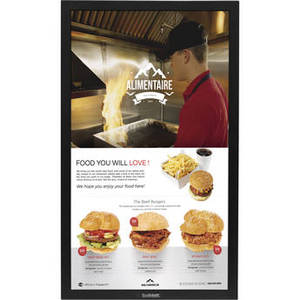

Pro Series DS-4217TSP 42" True-Outdoor All-Weather Touchscreen Portrait Digital Signage (Black)
Product Description
The black Pro Series DS-4217TSP 42” True-Outdoor Digital Signage from SunBriteTV is an all-weather, portrait-mode interactive touchscreen with a 700 cd/m2 brightness rating, allowing you to view content in direct sunlight. This display is suitable for installations in high-traffic outdoor venues such as resorts, stadiums, college campuses, and restaurant patios.
The DS-4217TSP digital signage features an interactive 3M MicroTouch Dispersive Signal Technology (DST) touchscreen made from chemically strengthened glass for improved scratch resistance. In additional to the anti-glare protective glass, this display uses the high-temperature Enhanced Solar Tolerance (EST) technology that prevents isotropic blackout.
The powder-coated, rust-proof aluminum exterior protects internal components from rain, insects, dust, humidity, and salt air. A built-in heating and cooling system allows the display to operate in temperatures from -40 to 122°F. A weatherproof, detachable 20W speaker bar (available separately) can be top or bottom mounted on the display.
| Display | |
| Screen Size (Diagonal) | 42" |
| Native Resolution | 1920 x 1080 |
| Supported Display Resolutions | |
| Panel Type | TN LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 700 cd/m� |
| Viewing Angle (H x V) | 178° H x 178° V |
| Screen Area | |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1300:1 |
| Dynamic Contrast Ratio | |
| Response Time | 12 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Not Specified by Manufacturer |
| Input Ports | 1 x Coaxial Antenna – Audio, Video 2 x HDMI – Audio, Video 1 x S-Video – Video 1 x RCA Composite – Video 2 x RCA Component – Video 1 x 15-Pin VGA – Video 3 x RCA Stereo (L/R) – Audio 1 x 1/8" (3.5 mm) Mini – Audio |
| Output Ports | 1 x TOSLINK Optical – Audio 1 x 1/8" (3.5 mm) Mini – Audio |
| USB Ports | 1 x USB 2.0 Type-B |
| Ethernet Ports | Not Specified by Manufacturer |
| Control Ports | 1 x 1/8" (3.5 mm) IR 1 x RS-232C |
| Number of OPS/Expansion Slots | |
| General | |
| TV Tuner | Not Specified by Manufacturer |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Touchscreen Technology | |
| Multi-Touch Points | |
| Surface Treatment | |
| Hardness Rating | |
| Haze Level | |
| Built-In Speakers | |
| Speaker Configuration | |
| Processing | |
| External Speaker Output | |
| Operating System | |
| Processor | |
| L2 Cache | |
| Storage | |
| RAM | |
| Supported File Systems | |
| GPU | |
| Chipset | |
| Slot | |
| Operating System Support | |
| Built-In Mic | |
| NFC | |
| Integrated Camera | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Picture in Picture (PIP) | |
| Menu Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.25 to 2.8 A |
| DC Input Power | 12 VDC at 3 A |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -40 to 122°F / -40 to 50°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Certifications | |
| Physical | |
| Wall Mounting | 400 x 400 mm |
| Material of Construction | Aluminum |
| Audible Noise | |
| IP Rating | |
| IR Sensor | |
| Lock Slot | Not Specified by Manufacturer |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 23.4 x 39.4 x 5.6" / 59.5 x 100.2 x 14.1 cm |
| Weight | 55.0 lb / 24.9 kg |
| Warranty Length |
