Product Description

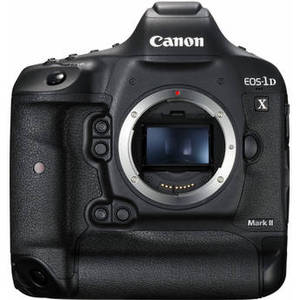

Bringing the shooting speed and video capabilities required by professional multimedia image-makers, the EOS-1D X Mark II is the flagship model within Canon's DSLR lineup, and is characterized by its robust processing capabilities and ability to enable a high-end multimedia workflow. At the heart of the imaging system is a full-frame 20.2MP CMOS sensor and dual DIGIC 6+ image processors, which contribute to fast continuous shooting rates up to 16 fps in live view, 14 fps with full-time AF and AE, and an expanded sensitivity range from ISO 50-409600. The sensor and processor combination also avails DCI 4K video recording at 60 fps and Full HD 1080p recording at 120 fps, along with the ability to record on-board to a CFast 2.0 memory card, or uncompressed Full HD video can be saved via HDMI to an optional external recorder. Benefitting stills shooting is an apt 61-point High Density Reticular AF II system, which includes 41 cross-type points for a high degree of precision in varying light conditions, and video shooting is enhanced by Dual Pixel CMOS AF, which makes its first appearance in a full-frame sensor for smooth, quick, and controllable AF in live view. With a versatile set of imaging traits, the Canon EOS-1D X Mark II takes its place as a high-performance tool for professional photographers and videographers alike.
Complementing the robust set of imaging specs is an equally robust physical design based on a magnesium alloy body construction that is both dust- and weather-sealed for use in harsh environments. Integrated within the body is a large 3.2" 1.62m-dot touchscreen LCD for bright, high-resolution live view monitoring and image review, and a large 0.76x Intelligent Viewfinder II is offered for clear eye-level shooting. For versatility in file handling, both CFast and CompactFlash memory card slots are available, and the 1D X Mark II also supports sharing imagery over Wi-Fi, as well as wireless remote camera control, via the optional WFT-E8A Wireless File Transmitter. Additionally, a built-in GPS module permits in-camera geotagging of photos and videos, and also allows for auto time syncing with the Universal Time Code for more efficient file sharing and organization.
Complementing the robust set of imaging specs is an equally robust physical design based on a magnesium alloy body construction that is both dust- and weather-sealed for use in harsh environments. Integrated within the body is a large 3.2" 1.62m-dot touchscreen LCD for bright, high-resolution live view monitoring and image review, and a large 0.76x Intelligent Viewfinder II is offered for clear eye-level shooting. For versatility in file handling, both CFast and CompactFlash memory card slots are available, and the 1D X Mark II also supports sharing imagery over Wi-Fi, as well as wireless remote camera control, via the optional WFT-E8A Wireless File Transmitter. Additionally, a built-in GPS module permits in-camera geotagging of photos and videos, and also allows for auto time syncing with the Universal Time Code for more efficient file sharing and organization.
Imaging | |
Lens Mount | Canon EF |
Camera Format | Full-Frame (1.0x Crop Factor) |
Pixels | Actual: 21.5 Megapixel Effective: 20.2 Megapixel |
Max Resolution | 5472 x 3648 |
Aspect Ratio | 3:2 |
Sensor Type / Size | CMOS, 36 x 24 mm |
File Formats | Still Images: JPEG, RAW Movies: MJPEG, MOV, MP4, MPEG-4 AVC/H.264 Audio: AAC, Linear PCM (Stereo) |
Bit Depth | 14-Bit |
Dust Reduction System | Yes |
Memory Card Type | CFast CompactFlash |
Focus Control | |
Focus Type | Autofocus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
Autofocus Points | Phase Detection: 61 (41 Cross-Type) |
Viewfinder/Display | |
Viewfinder Type | Pentaprism |
Viewfinder Eye Point | 20.00 mm |
Viewfinder Coverage | 100% |
Viewfinder Magnification | Approx. 0.76x |
Diopter Adjustment | -3 to +1 m |
Display Screen | 3.2" Rear Touchscreen LCD (1,620,000) |
Screen Coverage | 100% |
Diagonal Angle of View | 170.0° |
Exposure Control | |
ISO Sensitivity | Auto, 100-51200 (Extended Mode: 50-409600) |
Shutter | Type: Electronic & Mechanical Speed: 30 - 1/8000 Second , Bulb Mode |
Remote Control | TC-80N3, RS-80N3 (Optional) |
Mirror Lock-Up | Yes |
Metering Method | Evaluative Metering, Partial Metering, Spot Metering |
Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority Metering Range: EV 0.0 - EV 20.0 Compensation: -5 EV to +5 EV (in 1/3 or 1/2 EV Steps) |
Buffer/Continuous Shooting | Up to 14 fps at 20.2 MP for up to 170 Frames in Raw Format |
White Balance Modes | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten |
Flash | |
Built-in Flash | No |
Max Sync Speed | Mechanical Shutter:1 / 250 Second |
Flash Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
Dedicated Flash System | eTTL |
External Flash Connection | Hot Shoe, PC Terminal |
AV Recording | |
Video Recording | Yes, NTSC/PAL |
Video Format | 4096 x 2160p at 50/59.94 fps (800 Mb/s MOV via M-JPEG) 4096 x 2160p (500 Mb/s MOV via M-JPEG) 1920 x 1080p at 100/120 fps (360 Mb/s MOV) 1920 x 1080p at 50/59.94 fps (180 Mb/s MOV) 1920 x 1080p at 23.98/24/25/29.97 fps (90 Mb/s MOV) 1920 x 1080p at 50/59.94 fps (60 Mb/s MOV) 1920 x 1080p at 23.98/24/25/29.97 fps (30 Mb/s MOV) 1920 x 1080p at 50/59.94 fps (60 Mb/s MP4) 1920 x 1080p at 23.98/24/25/29.97 fps (30 Mb/s MP4) 1920 x 1080p at 25/29.97 fps (12 Mb/s MP4) |
Exposure Control | Auto: Shutter Speed, Aperture, ISO Manual: Shutter Speed, Aperture, ISO |
ISO Sensitivity | Auto/Manual, 100 - 25600 |
Exposure Compensation | -3 EV to +3 EV (in 1/3 or 1/2 EV steps) |
Focus | Auto Manual Continuous Auto |
Max Video Clip Length | 4096 x 2160: 29 Minutes, 59 Seconds |
Audio Recording | Built-In Mic: With Video + Voice Memo (Mono) Optional External Mic: With Video (Stereo) |
Performance | |
Start-up Time | 0.1 seconds |
Self Timer | 10 Seconds, 2 Seconds |
Interval Recording | No |
Connectivity | 1/8" Headphone, 1/8" Microphone, AV Output, Canon N3, HDMI C (Mini), USB 3.0 |
Wi-Fi Capable | Yes (with Optional Transmitter) |
Power | |
Battery | 1 x LP-E19 Rechargeable Lithium-Ion Battery Pack, 11.1 VDC, 2750 mAh 1 x LP-E4N Rechargeable Lithium-Ion Battery Pack, 11.1 VDC, 2450 mAh 1 x LP-E4 Rechargeable Lithium-Ion Battery Pack, 11.1 VDC, 2300 mAh |
AC Power Adapter | AC-E19 (Optional) |
Operating/Storage Temperature | Operating 32 to 113°F (0 to 45°C) Humidity: 0 - 85% |
Physical | |
Dimensions (W x H x D) | 6.2 x 6.6 x 3.3" / 158.0 x 167.6 x 82.6 mm |
Weight | 3.37 lb / 1530 g CIPA, with battery and memory card |
Warranty Length |
