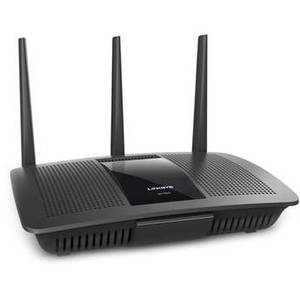

EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router


From Linksys | Model #: LIEA7500



See more in


EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router

Product Description

With the EA7500 Max-Stream Dual-Band Wireless-AC1900 Gigabit Router from Linksys you can set up and configure your wireless network in no time using the Linksys Smart Wi-Fi application or through a web browser. Simply plug in the router and connect it to your modem, sign up for a Linksys Smart Wi-Fi account, and begin configuring your network settings such as wireless encryption, operating modes, drive management, and more.

The EA7500 comes equipped with three dual-band detachable antennas and operates on both the 2.4 GHz and 5 GHz frequencies. With support for the 802.11ac networking standard users can take advantage of a maximum data transfer rate of up to 1900 Mbps. The wireless signal emitted by this router is beamed directly to connected devices thanks to built-in beamforming technology providing a stronger, more reliable signal. Users also benefit from MU-MIMO (multiple user - multiple input multiple output) technology designed to handle multiple data streams simultaneously to ensure tasks such as online gaming and streaming multimedia content operate lag free.

If a wired connection is what you need, the EA7500 has you covered as it comes equipped with four Gigabit Ethernet ports. In addition to Gigabit Ethernet connectivity, you can also take advantage of a single USB 2.0 and USB 3.0 port designed to support external storage drives formatted FAT, NTFS, and HFS+. Once a drive is connected users throughout the network can access content stored on that drive.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 3
MU-MIMO Support
WLAN Mode 802.11ac
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols
Antenna Placement External
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s USB Type-A
2 x 480 Mb/s USB Type-A
USB Sharing Support
Performance
Throughput 2.4 GHz: 600 Mb/s
5 GHz: 1300 Mb/s
VPN Throughput
Security
Guest Network Support
Wireless Security WEP, WPA, WPA2
Hardware
RAM
Storage Capacity
Processor 1.4 GHz Dual-Core
Memory Card Slots
Supported File Systems HFS+, NTFS, FAT
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC at 3.5 A
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 10.12 x 7.24 x 2.2" / 257 x 184 x 56 mm
Weight 20.74 oz / 558 g
