8x30 M830r Military Binocular (Mil Reticle)


From Steiner | Model #: ST8X30RM



See more in

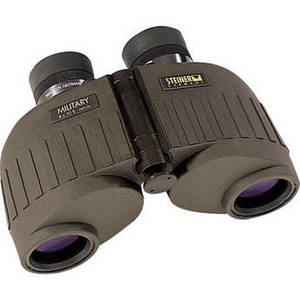

8x30 M830r Military Binocular (Mil Reticle)

Product Description

Designed for mid-range observations by law enforcement, military, and tactical professionals, and engineered to exacting military specifications for outstanding performance in challenging environmental conditions, the Steiner Optics 8x30 M830r Military Binocular is engineered to be an invaluable addition to any kit. This model is outfitted with a Mil-scale reticle specifically designed to enable fast and easy estimation of the range to, and size of, subjects such as boats, buoys, game animals, and landmarks.

This binocular's optics are fully multi-coated to maximize light transmission through the light path, with a wide angle of view that not only provides sweeping views but also minimizes the discomfort often associated with using optics on rough or rolling seas. All of these features, when coupled with the traditional Porro prism light path, present the user with an immersive observational experience defined by bright and clear high-contrast views and accurate color rendition.

Complementing the optical performance are construction details that allow this binocular to withstand the rigors of the outdoors. These details begin with Steiner's Sports-Auto-Focusing System, which allows the user to focus each eyepiece just one time and eliminates the need to refocus again regardless of how near or far the subject is - or if it is moving. The chassis is made of a lightweight and impact-resistant Makrolon polycarbonate material that is wrapped in an oil, petroleum, and chemical-resistant NBR synthetic rubber armor that offers improved grip security, especially in cold and wet weather. Its optical tubes are nitrogen-filled and O-ring sealed to be waterproof to a depth of 16 feet and resistant to internal fogging when moving through extreme temperature changes and environmental conditions.

In a blind, on the boat, at the range, or during surveillance, the M830r Military binocular performs to a professional's high standards in all weather and environmental conditions.

Prism Type Porro
Magnification 8x
Objective Lens Diameter 30 mm
Angle of View 7.5° (actual)
Field of View 392.0' @ 1000 yd / 130.1 m @ 1000 m
Minimum Focus Distance 66' / 20.1 m
Exit Pupil Diameter 3.75 mm
Eye Relief 15.0 mm
Interpupillary Adjustment 56.0 - 74.0 mm / 2.2 - 2.9"
Dioptric Correction ±5
Focus Type Individual
Tripod Mount None
Dimensions 6.7 x 4.2 x 2.2" / 17.0 x 10.7 x 5.6 cm
Weight 18.7 oz / 530.1 g
