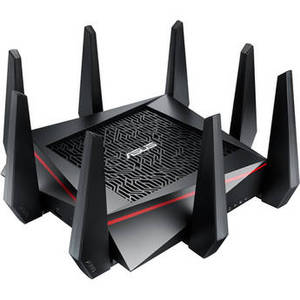

RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router


From ASUS | Model #: ASRTAC5300



See more in


RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router

Product Description

With built-in tri-band functionality, the RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router from ASUS allows users to connect to one 2.4 GHz frequency and two separate 5 GHz frequencies. With two 5 GHz operating frequencies this router can support more users without sacrificing bandwidth or network performance. Along with tri-band connectivity, the RT-AC5300 supports the enhanced 802.11ac networking standard and offers a maximum wireless data throughput of up to 5334 Mbps. This enhanced Wi-Fi connectivity allows for low latency gaming, streaming of 4K multimedia content, downloading of large files, and much more. In addition to the 802.11ac networking standard, this router also supports 802.11a/b/g/n network standards making it easy to connect nearly any Wi-Fi enabled device to your network.

On the outside of the RT-AC5300 you will find eight adjustable antennas featuring AiRadar beamforming technology supporting a transmission distance of up to 5,400 square feet (500 square meters). With beamforming technology the wireless signal is beamed directly to the connected device for a more focused, more reliable connection. This ASUS router not only beams the signals to your devices, it has the ability to support more devices without slowing down thanks to MU-MIMO technology.

If a wired connection is what you desire, you can connect to any of the four Gigabit Ethernet ports. Dedicated link aggregation support provides enhanced data transfer speeds when a super fast Internet connection is required. Inside the RT-5300 you will find 128MB flash memory and 512MB of RAM to ensure the router operates smoothly when being pushed to the max.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 8
MU-MIMO Support 4 x 4
WLAN Mode 802.11ac
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols IPv4
IPv6
Antenna Placement External
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s USB Type-A
1 x 480 Mb/s USB Type-A
USB Sharing Support
Performance
Throughput 2.4 GHz: 1000 Mb/s
5 GHz: 2167 Mb/s
VPN Throughput
Security
Guest Network Support
Wireless Security WEP, WPA, WPA2
Hardware
RAM 512 MB
Storage Capacity 128 MB
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards 802.1x
DOCSIS Support
Electrical
AC Input Power 110 to 240 VAC, 50 / 60 Hz
DC Input Power 19 VDC at 3.42 A
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 9.6 x 9.6 x 2.6" / 245 x 245 x 65 mm
Weight 4 lb / 1.8 kg
