Product Description

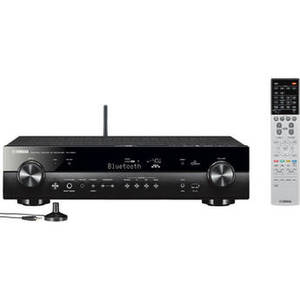

The black Yamaha RX-S601 5.1-Channel Slim Network A/V Receiver delivers powerful multi-channel audio and wireless connectivity in a compact package. This receiver can produce up to 60W per channel in stereo mode at 6 ohms and features a discrete amplifier design for enhanced sound quality. Yamaha YPAO technology is onboard to help you tailor the sound of the receiver to your listening space with the included setup microphone. Built-in AirPlay and Bluetooth enables the receiver to wirelessly stream music from similarly equipped audio sources, such as smartphones and tablets. Integrated MusicCast connectivity allows you to add additional MusicCast-enabled audio for multiroom music playback.
Built-in 3D and 4K pass-through allows you to connect 3D and 4K video sources to the receiver without signal loss. Six HDMI inputs are onboard for connecting high-definition video and audio sources. There is also an HDMI output for displaying video on an external display. Additionally, this slim receiver can decode high-resolution surround sound formats such as Dolby TrueHD and DTS-HD Master Audio. At just 4.4" high, the RX-S601 was designed for easy placement in your home theater environment.
Built-in 3D and 4K pass-through allows you to connect 3D and 4K video sources to the receiver without signal loss. Six HDMI inputs are onboard for connecting high-definition video and audio sources. There is also an HDMI output for displaying video on an external display. Additionally, this slim receiver can decode high-resolution surround sound formats such as Dolby TrueHD and DTS-HD Master Audio. At just 4.4" high, the RX-S601 was designed for easy placement in your home theater environment.
Main Unit | |
Nominal Output Levels | Rated Output Power (1 kHz, 1-ch driven): 95 W (6 ohms, 0.9% THD) Rated Output Power (20 Hz - 20 kHz, 2-ch driven): 60 W (6 ohms, 0.09% THD) |
Dynamic Power per Channel | 8/6/4/2 Ohms: 90/110/140/160 W |
Channels | 5.1 |
DAC Type | Burr-Brown 192 kHz/24-bit DACs for all channels |
Audio Delay | 0 - 500 ms |
Tuner | FM / AM |
Surround Sound | Cinema DSP (3D), DSP Programs (17), Silent Cinema, Virtual Presence Speaker, Virtual Cinema Front, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio |
Video | |
Pass-Through | 3D, 4K |
Upscaling | None |
Conversion | None |
Deep Color / x.v. Color Support | Yes |
HDCP Version | 2.2 |
Functionality | Auto lip sync, 24 Hz support |
Connectivity | |
Bluetooth | Yes (AAC) |
AirPlay | Yes |
Wi-Fi | Yes (with Wi-Fi Direct) |
Inputs | 6 x HDMI 1 x Optical 2 x Digital coaxial 3 x Composite video 3 x Stereo RCA 1 x 1/8" (3.5 mm) auxiliary (front) 1 x USB (front) |
Outputs | 1 x HDMI 1 x Composite video 1 x Subwoofer pre-out 1 x Headphones (front) |
Other Ports | 1 x LAN 1 x YPAO microphone (front) 1 x FM tuner antenna 1 x AM tuner antenna 1 x Wi-Fi antenna terminal |
Speaker Connectors | Front Left Front Right Center Surround Left/Zone 2/Bi-amp Surround Right/Zone 2/Bi-amp |
HDMI CEC | Yes |
Audio Return Channel (ARC) | Yes |
General | |
Power Consumption | Standby (IR Only): ≤0.1 W |
On-Screen Display | Yes (color) |
Dimensions (W x H x D) | Receiver: 17.1 x 4.4 x 12.9" / 43.4 x 11.2 x 32.8 cm With Antenna Up: 17.1 x 6.9 x 12.9" / 43.4 x 17.5 x 32.8 cm |
Weight | 17.2 lb / 7.8 kg |
