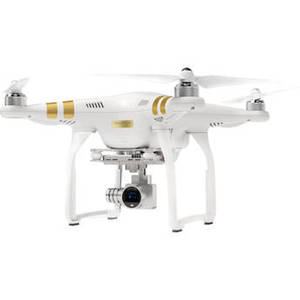

Phantom 3 Professional Quadcopter with 4K Camera and 3-Axis Gimbal


From DJI | Model #: DJP3P



See more in


Phantom 3 Professional Quadcopter with 4K Camera and 3-Axis Gimbal

Product Description

A complete 4K camera and 3-axis gimbal system come integrated with the Phantom 3 Professional edition quadcopter from DJI. In addition to video, the camera is capable shooting up to 12 MP still photos using JPEG or non-proprietary DNG RAW format. The three axes of the gimbal give you pan and tilt control, and keep the horizon line level even as the aircraft banks. Different gimbal settings allow the camera to lock onto a fixed subject, be moved manually using transmitter rotaries or the app, or to simply provide camera stabilization.

This bundle of the Phantom 3 is classed as "ready-to-fly." This means the basics to get you in the air are included - a flight battery, charger, and pre-bound handheld transmitter (radio controller), and 16GB microSD card among them. Depending on your application, you may also require additional memory cards, additional flight batteries, and a mobile device to access the app, and possibly other accessories. Also note that a number of important compass and GPS calibration steps must be carried out before flying to ensure the flight control computer operates correctly. Please refer to the manual or Quick Start Guide before your first flight.
Performance
Maximum Speed Ascent: 16.4' fps / 5 m/s
Descent: 9.8' / 3 m
Hover Accuracy Vertical: ±3.9" / 10 cm
Horizontal: ±3.3' / 1 m
Maximum Altitude Above Sea Level: 19,685' / 6000 m
Flight Time 23 minutes (depending on conditions)
Flight Control System
GPS Mode GPS / GLONASS
Vision Positioning Frequency: 50 Hz
Velocity Range: Below 26.2 fps / 8 m/s (6.6' / 2 m above the ground)
Altitude Range: 11.8" to 118.1" / 30 cm to 300 cm
Operating Range: 11.8" to 118.1" / 30 cm to 300 cm

Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux)
Transmitter
Frequency 2.400 to 2.483 GHz
Communication Distance Up to 3.1 miles / 5 km (outdoors and unobstructed)
Receiver Sensitivity 1%PER: 101 dBm ±2 dBm
Transmitter Power EIRP: 20 dBm
Working Current 1.2 A at 7.4 V
Connectivity 1 x USB type A female for mobile device interface
1 x Micro-USB female for firmware updates / assistant software 1 x Charge port
Lightbridge Support Yes; compatible iOS or Android mobile device with USB required
Mobile Device Holder Compatibility: Tablet or smartphone
Operating Temperature 32 to 104°F / 0 to 40°C
Camera
Sensor Make: Sony EXMOR
Size: 1/2.3"
Resolution: 12.76 MP (12.4 MP effective)
Lens Aperture: f/2.8
FOV: 94°
Focal Length: 20 mm (35 mm equivalent)
Elements: 9
Focus: 0 to ∞
Photo Resolution Up to 12 MP (4000 x 3000)
ISO Range Video: 100 to 3200
Photo: 100 to 1600
Video Resolutions DCI 4K (4096 x 2160): 24p, 25p
UHD 4K (3840 x 2160): 24p, 25p, 30p
1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p
720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p
Photo Modes Single Shot
Burst Shooting: 3/5/7 shots
Auto Exposure Bracketing (AEB): 3/5
Bracketed Frames at 0.7 EV Bias
Time-lapse
File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps)
Photo: JPEG, DNG RAW
Recording Media Type: microSD/SDXC card up to 64 GB
Format: FAT32 / exFAT

Note: Class 10, UHS-1 or faster card required
Operating Temperature 32 to 104°F / 0 to 40°C
Gimbal
Number of Axes 3-axis (pitch, roll, yaw)
Control Range -90° to +30°
Motor
Type Brushless
Recommended Takeoff Weight 10.6 oz / 300 g per axis
Maximum Tension 1.8 lb / 800 g per axis
Stator Size 0.9 x 0.5" / 23 x 12 mm
Motor Velocity Constant KV: 960 rpm/V
Working Temperature 23 to 104°F / -5 to 40°C
Weight 1.9 oz / 55 g
Flight Battery
Chemistry Lithium-polymer
Capacity 4480 mAh
68 Wh
Configuration 4S
Voltage 15.2 VDC
Weight 12.9 oz / 365 g
Maximum Charging Power 100 W
Operating Temperature 32 to 104°F / 0 to 40°C
Charger Voltage: 17.4 VDC
100 W
Mobile App
Name DJI Pilot
System Requirements OS: iOS 8.0 or later; Android 4.1.2 or later

Recommended Devices:
Apple (iOS): iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Air (Wi-Fi and cellular versions), iPad mini 2 (Wi-Fi and cellular versions), iPad Air 2 (Wi-Fi and cellular versions), iPad mini 3 (Wi-Fi and cellular versions)
(Note: Optimized for iPhone 5s, iPhone 6, and iPhone 6 Plus)

Samsung (Android): Galaxy Tab SM-T705C, Galaxy S6, Galaxy Galaxy S5, Galaxy Note4, Note3

Other (Android): Google Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1

Note: Additional devices may be compatible but have not yet been tested
General
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions Diagonal (Including Propellers): 23.2" / 590 mm
Weight Including Battery and Propellers: 2.8 lb / 1.3 kg
