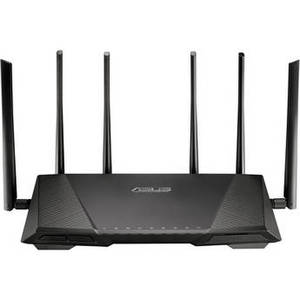

RT-AC3200 Tri-Band Wireless-AC3200 Gigabit Router


From ASUS | Model #: ASRTAC3200



See more in


RT-AC3200 Tri-Band Wireless-AC3200 Gigabit Router

Product Description

Completely transform your network with the RT-AC3200 Tri-Band Wireless-AC3200 Gigabit Router from ASUS. This router combines 802.11ac Wi-Fi technology with a tri-band configuration to generate maximum data transfer rates of up to 3200 Mbps. This enhanced data transfer rate is perfect for a variety of applications such as streaming 4K/UHD content, online gaming, transferring large files, and more. ASUS has designed this router with simplicity in mind eliminating the hassle of choosing which router band you want to connect to with Tri-Band Smart Connect.

The RT-AC3200 Router from ASUS features 802.11a/b/g/n/ac network standards compatibility, dual band 2.4 GHz and 5 GHz functionality, and comes equipped with four Gigabit Ethernet ports. Accompanying those Gigabit Ethernet ports, you will find one USB 2.0 port and one USB 3.0 port designed to allow you to attach peripherals such as external hard drives and USB printers directly to the router. In addition to the network ports and USB connectivity, you will see six external antennas set up in a 3x3 configuration to support two 802.11ac networks simultaneously.

Once configured, you can secure your wireless network using 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise, WPA2-Enterprise, and Radius with 802.1x encryption. You can also connect wireless devices to the network with ease by using the integrated Wi-Fi Protect Setup (WPS) button. With integrated WAN, LAN, WPS, wireless and power LED indicator you can see the status of your network connections and router.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 6
MU-MIMO Support
WLAN Mode 802.11ac
Sensitivity
Antenna Gain
Transmit Power
Supported Protocols IPv4
IPv6
Antenna Placement External
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
1 x 5 Gb/s USB Type-A
1 x 480 Mb/s USB Type-A
USB Sharing Support
Performance
Throughput 2.4 GHz: 600 Mb/s
5 GHz: 1300 Mb/s
VPN Throughput
Security
Guest Network Support Yes
Wireless Security WEP, WPA, WPA2
Hardware
RAM
Storage Capacity
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards 802.1x
DOCSIS Support
Electrical
AC Input Power 110 to 240 VAC, 50 / 60 Hz
DC Input Power 19 VDC at 2.37 A
Power Consumption
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Storage Altitude
General
IP Rating
Certifications
Dimensions 11.4 x 7.4 x 2.28" / 28.96 x 18.8 x 5.79 cm
Weight 2.24 lb / 1.02 kg
