Product Description

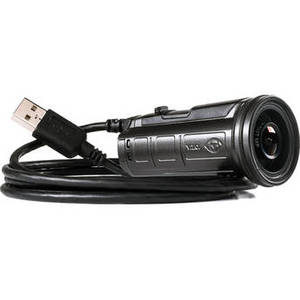

The Stream Web Programmable HD IP/Network Camera with USB from V.I.O. combines the take-anywhere ruggedness of an IP67-rated action camera with the streaming functionality of a professional IP encoder. It streams up to 1080p resolution using H.264 encoding and the widely-supported RTSP protocol, and in addition can record internally on a microSDHC memory card up to 32GB in size. It features a 142-degree ultra-wide lens to help give footage an immersive POV feel, and uses a 1/2.7" Full HD CMOS sensor combined with an f/2.0 aperture, which together are designed to adapt to poorly- and well-lit situations alike.
The camera features a USB interface that delivers power and can be used for streaming. A USB power source is not included, and can be anything from a USB backup battery to a computer - it just needs to supply 5VDC at 1 to 2 amps. There is also a Wi-Fi connection so that the camera can connect wirelessly to a network or directly to another Wi-Fi enabled device, such as a smartphone, using an "ad hoc" connection. The included USB cable is 5' in length, and the camera supports cables up to 16.4'.
For mounting, a camera clamp with 1/4"-20 tripod adapter is included. In addition, the Stream is compatible with a range of separately available mounting solutions, so that it can be adapted for use in nearly any scenario - on a boat, attached to a car, helmet mounted - just about anything you can think of.
The camera features a USB interface that delivers power and can be used for streaming. A USB power source is not included, and can be anything from a USB backup battery to a computer - it just needs to supply 5VDC at 1 to 2 amps. There is also a Wi-Fi connection so that the camera can connect wirelessly to a network or directly to another Wi-Fi enabled device, such as a smartphone, using an "ad hoc" connection. The included USB cable is 5' in length, and the camera supports cables up to 16.4'.
For mounting, a camera clamp with 1/4"-20 tripod adapter is included. In addition, the Stream is compatible with a range of separately available mounting solutions, so that it can be adapted for use in nearly any scenario - on a boat, attached to a car, helmet mounted - just about anything you can think of.
Camera | |
Sensor | 1-Chip 1/2.7" CMOS |
Optics | |
Maximum Aperture | f/2 |
Lens Elements | 6 |
Minimum Focusing Distance | 31.5" / 80.0 cm |
Angle of View | 142° (At 1080p, 720p, 480p, and 240p) |
Sensor | |
Pixel Gross | |
Focal Length | |
35mm-Equivalent Focal Length | |
Maximum Aperture | |
Minimum Focusing Distance | |
Fixed Focus | |
Angle of View | |
Recording | |
Recording Media | x microSD/HC (32 GB Maximum) |
Recording Time | 32 GB 1920 x 1080 4.5 hours 1280 x 720 4.5 hours |
Video Format | 1920 x 1080p at 24/25/30 fps (H.264) 1280 x 720p at 25/30/50/60 fps (H.264) 720 x 480p at 25/30 fps (H.264) 320 x 240p at 15 fps (H.264) |
Aspect Ratio | 16:9 |
Audio Format | AAC-LC |
Sampling Frequency | AAC: 16.0 kHz |
Photo ISO Range | |
Video ISO Range | |
Streaming ISO Range | |
Features | |
Waterproof Depth Rating | 3.3' / 1.0 m (Camera) |
IP Rating | IP67 |
Wi-Fi | Yes, 802.11b/g/n |
Tripod Mount | 1/4" - 20 |
Input/Output Connectors | |
Outputs | 1 x USB 2.0 |
General | |
Operating Temperature | -4 to 104°F / -20 to 40°C |
Dimensions (W x H x D) | 1.4 x 1.4 x 3.1" / 35.6 x 35.6 x 78.7 mm |
