Product Description

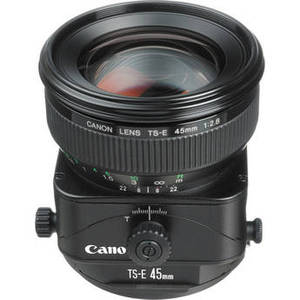

Mixing a normal field of view with perspective- and depth of field control, the TS-E 45mm f/2.8 from Canon is a tilt-shift lens well-suited to producing well-corrected imagery with a natural perspective. Up to +/- 8° of tilt is possible, for focus control, and +/- 11mm of shift, to adjust perspective and composition. The tilt-shift mechanism can be rotated +/- 90° for applying movements in any direction, and a tilt-locking mechanism can be used while shooting for greater stability. The lens also employs a floating optical system and rear focusing design to maintain image quality throughout the focusing range and a Super Spectra coating has been applied to individual element to reduce flare and ghosting for increased contrast and color accuracy.
| Performance | |
| Focal Length | 45mm |
| Aperture | Maximum: f/2.8 Minimum: f/22 |
| Camera Mount Type | Canon EF |
| Format Compatibility | 35mm Film / Full-Frame Digital Sensor |
| Angle of View | 51° |
| Tilt/Shift | Tilt ± 8° Shifts ± 11mm |
| Minimum Focus Distance | 1.31' / 40 cm |
| Magnification | 0.16x |
| Maximum Reproduction Ratio | 1:6.2 |
| Optical Design | 10 Elements in 9 Groups |
| Diaphragm Blades | 8, Rounded |
| Features | |
| Autofocus | No |
| Physical | |
| Filter Thread | Front: 72 mm |
| Dimensions (DxL) | Approx. 3.19 x 3.55" / 81 x 90.1 mm |
| Weight | 1.42 lb / 645 g |
| Warranty Length | Limited 1-Year Warranty |
