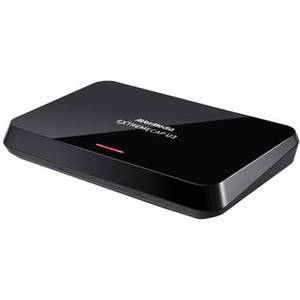

ExtremeCap U3

From AVerMedia | Model #: AVCV710

See more in

Product Description

Designed with gamers in mind, the AverMedia ExtremeCap U3 is a USB 3.0 capture box that allows you to capture, record, and stream 1080/60p video via HDMI and component inputs from your PC and game consoles. It is capable of transmitting uncompressed HD data to popular video software with its DirectShow compatibility. The ExtemeCap U3 comes bundled with AverMedia's RECentral software for recording/streaming video with customizable settings, as well as a USB 3.0 Diagnosis Tool to ensure hardware compatibility. Also available with purchase are plug-ins for capturing and editing video within Sony Vegas and Adobe Premiere Pro CS6. A USB 3.0 cable and a component video / stereo audio dongle cable come included.

Note: The Extreme Cap U3 does not come with installation disc. Driver, Software, and plug-ins must be downloaded from AverMedia's website.

Hardware
Input	1 x HDMI 1 x RCA Component 1 x RCA Audio L/R
Host Connection	USB 3.1 Gen 1 Type-A
Output	None
Supported Capture Resolutions	1920 x 1080p at 24/25/30/50/60 fps 1920 x 1080i at 50/60 Hz 1680 x 1050p at 30/60 fps 1440 x 900p at 30/60 fps 1360 x 768p at 30/60 fps 1280 x 1024p at 30/60 fps 1280 x 800p at 30/60 fps 1280 x 768p at 30/60 fps 1280 x 720p at 30/60 fps 1024 x 768p at 30/60 fps 800 x 600p at 60 fps 720 x 576p at 25/50 fps 720 x 480p at 30/60 fps 640 x 480p at 60 fps
Supported Pass-Through Resolutions	Not Specified by Manufacturer
Media Card Slots	None
Supported Formats	MP4
Maximum Bit Rate
System Requirements
CPU	Intel Core i5-3400 (Desktop) 2.0 GHz Intel Core i7-3537U (Laptop)
Free Disk Space
GPU	NVIDIA GT 630 (Desktop) NVIDIA GT 735M (Laptop)
Supported Operating Systems	Windows 8 Windows 7
General
DC Input Power
Power Requirement	Bus-Powered USB Port
Dimensions	5.4 x 3.3 x 0.7" / 137.2 x 84.8 x 18.6 mm
Weight	0.4 oz / 182.0 g
