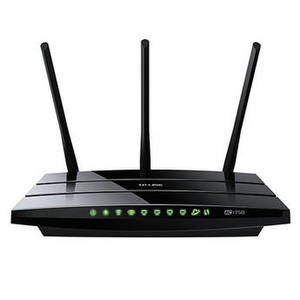

Archer C7 AC1750 Wireless Dual Band Gigabit Router


From TP-Link | Model #: TPARCHERC7



See more in


Archer C7 AC1750 Wireless Dual Band Gigabit Router

Product Description

This Archer C7 AC1750 Wireless Dual Band Gigabit Router from TP-Link features dual band functionality along with the enhanced 802.11ac Wi-Fi standard providing improved wireless data transfer speeds up to 1300 Mbps. Along with the 802.11ac Wi-Fi standard, you also benefit from 802.11a/b/g/n Wi-Fi standards allowing for seamless connectivity with a wide variety of Wi-Fi enabled devices. Additionally, the Archer C7 supports both 2.4 GHz and 5 GHz frequencies making it easy to allocate more data intensive tasks to the less congested 5 GHz frequency.

Along with enhanced wireless coverage, you also benefit from four full gigabit Ethernet ports located on the back of the router. Whether connecting to the router via Wi-Fi or the integrated gigabit Ethernet ports, you can rest assured your connection is secure as this router supports WEP, WPA / WPA2, and WPA / WPA2-PSK encryption standards. Along with enhanced encryption standards, this router also supports a variety of access control methods including parental controls, local management control, host list, access schedule, and rule management giving you complete administrative rights to your entire network.
Wireless
Wireless Frequency Bands 2.4 GHz, 5 GHz
Number of Antennas 6
MU-MIMO Support
WLAN Mode 802.11ac
Sensitivity -63 to -96 dBm
Antenna Gain
Transmit Power
Supported Protocols IPv4
IPv6
Antenna Placement External, Internal
GSM 2G
GSM 3G/3.5G
Interface
Ports 1 x Ethernet (RJ45) (Uplink)
4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
2 x 480 Mb/s USB Type-A
3 x SMA Antenna
USB Sharing Support Yes
Performance
Throughput 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s
VPN Throughput
Security
Guest Network Support Yes
Wireless Security WEP, WPA, WPA2
RAM
Storage Capacity
Processor
Memory Card Slots
Supported File Systems
Display
Supported IEEE Standards
DOCSIS Support
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
DC Input Power 12 VDC at 2.5 A
Power Consumption
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90%
Storage Humidity 5 to 90%
Operating Altitude
Storage Altitude
General
IP Rating
Certifications RoHS, as per Manufacturer
Dimensions 9.6 x 6.4 x 1.3" / 243 x 160.6 x 32.5 mm
Weight
