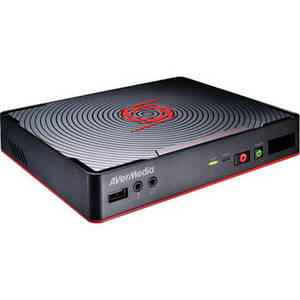

Game Capture HD II


From AVerMedia | Model #: AVC285AC



See more in


Game Capture HD II

Product Description

With the Game Capture HD II from AVerMedia you can record your game footage and edit it without the need for a PC. Simply plug in your Xbox 360, Xbox One, Playstation 3, Playstation 4 or Wii U into either the audio/video component inputs or the pass-thru HDMI ports on the back of the device and begin recording. The integrated microphone and headphone jacks on the front of the device enable you to provide live in game commentary as you record.

Once your recording is finished, you can edit it right from the TV with the built-in video editor and save it to an external hard drive via the built-in USB 2.0 port. Upon completion of the editing process, you can upload your clip directly to YouTube by connecting the Game Capture HD II device to the Internet via the LAN port located on the back of the device. You can also edit and control your recordings from the free GameMate app, compatible with both iOS and Android devices.
Hardware
Input 1 x HDMI
1 x RCA Component
1 x RCA Audio L/R
1 x 1/8" (3.5 mm) Microphone
Computer Interface 1 x USB 3.1 Gen 1 Type-A
1 x SATA (Unspecified Version)
1 x RJ45 Gigabit Ethernet
Output 1 x HDMI
1 x 1/8" (3.5 mm) Headphone
Supported Capture Resolutions 1920 x 1080p at 60 fps
1920 x 1080i
1280 x 720p
768 x 576p
768 x 576i
800 x 480p
800 x 480i
Supported Pass-Through Resolutions 1920 x 1080p at 30
1920 x 1080i
1280 x 720p
720 x 576p
720 x 576i
720 x 480p
720 x 480i
Media Card Slots None
Supported Formats MP4
Maximum Bit Rate
System Requirements
CPU Not Specified by Manufacturer
Free Disk Space
GPU Not Specified by Manufacturer
Supported Operating Systems Not Specified by Manufacturer
General
DC Input Power 12 VDC at 1.5 A
Power Requirement Power Adapter
Dimensions 7.5 x 1.3 x 6.0" / 190.0 x 33.5 x 152.5 mm
Weight 14.9 oz / 421.0 g
