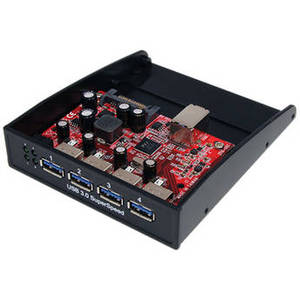

3.5/5.25" USB 3.0 Front Panel 4-Port Hub (Black)


From StarTech | Model #: ST35BAYU3S4



See more in


3.5/5.25" USB 3.0 Front Panel 4-Port Hub (Black)

Product Description

The black 3.5/5.25" USB 3.0 Front Panel 4-Port Hub from StarTech turns any available 3.5" (8.89cm) computer case front bay into a 4-port USB 3.0 hub. Using only a single USB connection, this front panel hub adds four easily accessible USB ports to the front of your computer case through a 3.5" (8.89cm) bay or through a 5.25" (13.3cm) bay using the optional Front Bay Bracket Adapter accessory. Each of the added ports are compliant with USB 3.0 standard, which support up to 5 Gb/s of bandwidth (10x faster than the USB 2.0 standard) and up to 900mA of power.
Hardware
Ports 4
Interface USB 3.0
Chipset ID VLI - VL810
Connectors
Internal Ports SATA power (15-pin) plug
USB 3.0 B (9-pin; SuperSpeed) female
External Ports 4 x USB 3.0 A (9-pin; SuperSpeed) female
Performance
Type and Rate USB 3.0 - 5 Gb/s
Software
OS Compatibility Windows XP (32/64-bit)/Server 2003 (32/64-bit)/Server 2008 R2/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)
Other Specs
Enclosure Type Plastic
LED Indicators 4 x USB device link (green)
Power USB powered
Environmental
Operating Temperature 41 to 122°F (5 to 50°C)
Storage Temperature -13 to 158°F (-25 to 70°C)
Humidity 20 ~ 80% RH
General
System and Cable Requirements Available 3.5" (8.89 cm) front bay
Available USB 3.0 type A port
Certifications CE, FCC, RoHS
Dimensions (L x W x H) 4.7 x 3.9 x 1" (120 x 100 x 25 mm)
Weight 3.5 oz (100 g)
