Product Description

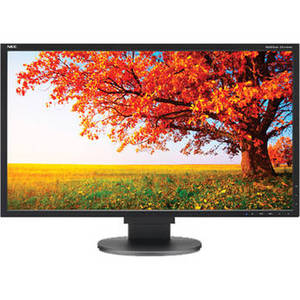

The EA224WMI-BK 22" Widescreen LED Backlit IPS Monitor from NEC is an IPS panel providing wide viewing angles, color consistency, and image accuracy. With LED backlight technology you can take advantage of a thinner, lighter design. The EA224WMI-BK comes equipped with DisplayPort, HDMI, DVI-D, and VGA D-Sub inputs as well as an integrated 4-port USB 2.0 hub. With touch-sensitive controls you can make necessary adjustments to the picture quality of your display, or take advantage of smart sensing technology including ambient light and human sensors to automatically determine the proper display brightness. For multi-screen configurations you can utilize the ControlSync feature allowing setup of up to six MultiSync EA Series monitors.
| Display | |
| Size | 21.5" |
| Screen Area | |
| Panel Type | IPS-Type LCD |
| Curvature | |
| Touchscreen | No |
| Native Resolution | 1920 x 1080 |
| Finish | Not Specified by Manufacturer |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Refresh Rate | Not Specified by Manufacturer |
| Adaptive Sync Technology | None |
| Horizontal Frequency | |
| Vertical Frequency | |
| Pixel Clock Frequency | |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Look-Up Table | |
| HDR Compatibility | Not Specified by Manufacturer |
| Color Gamut | Not Specified by Manufacturer |
| Response Time | 6 ms (Overdrive) |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Dot Pitch | 0.25 x 0.25 mm |
| Backlight Lifespan | |
| Inputs / Outputs | |
| Connectivity | 1 x 3.5 mm Output 4 x USB Type-A 2.0 1 x DVI-D 1 x DisplayPort Input 1 x HDMI 1 x VGA |
| Built-In Speakers | Yes |
| Menu Languages | |
| Power | |
| Power Consumption | 0.4 W (Standby) 26 W (Typical) |
| Environmental | |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 85% |
| Operating Altitude | 0 to 6562' / 0 to 2000 m |
| Storage Altitude | 40,000' / 12,192 m |
| Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer |
| Physical | |
| Height Adjustment | 5.1" / 13 cm |
| Rotation Adjustment | Not Specified by Manufacturer |
| Swivel Adjustment | Not Specified by Manufacturer |
| Tilt Adjustment | Not Specified by Manufacturer |
| Mounting-Hole Pattern | Not Specified by Manufacturer |
| Kensington Lock Slot | Not Specified by Manufacturer |
| Dimensions (W x H x D) | 20.0 x 14.6 x 8.6" / 50.7 x 37.0 x 21.8 mm (With Stand) 20.0 x 11.9 x 2.4" / 50.7 x 30.1 x 6.1 mm (Without Stand) |
| Weight | 13.2 lb / 6 kg (With Stand) 8.2 lb / 3.7 kg (Without Stand) |
