Product Description

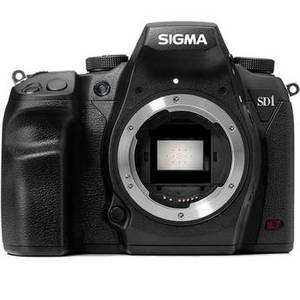

Using the True II image processing software, the SD1 Merrill delivers high-resolution images processed quickly with high definition and a smooth and subtle graduation of color. RAW file sizes range up to 45MB. These impressive features are housed in a lightweight weather-resistant solid magnesium-alloy body built to take the bumps and shocks of the real world. A pentaprism viewfinder and a high-resolution (460,000 dots) LCD monitor give you options for composing, focusing and reviewing your images.
A panoply of features include shutter speeds up to 1/8000 sec., seven different color modes, continuous shooting at up to 6 fps, a built-in pop-up flash, and sensitivity up to 6400 ISO. The SD1 Merrill has a 1.5x crop factor (compared to 35 mm or full-frame cameras). Sigma SA mount lenses are compatible with the SD1 Merrill.
Imaging | |
Lens Mount | Sigma SA |
Camera Format | APS-C / (1.5x Crop Factor) |
Pixels | 46 Megapixel |
Max Resolution | 46 MP: 4800 x 3200 |
Aspect Ratio | 4:3 |
Sensor Type / Size | CMOS, 23.5 x 15.7 mm |
File Formats | Still Images: JPEG, RAW |
Bit Depth | 12-Bit |
Memory Card Type | CompactFlash |
Focus Control | |
Focus Type | Autofocus |
Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-servo AF (S) |
Viewfinder/Display | |
Viewfinder Type | Pentaprism |
Viewfinder Coverage | 98% |
Viewfinder Magnification | Approx. 0.95x |
Diopter Adjustment | -3 to +1.5 m |
Display Screen | 3" Rear Screen LCD (460,000) |
Screen Coverage | 100% |
Exposure Control | |
ISO Sensitivity | 100-6400 |
Shutter | 30 - 1/8000 Second |
Metering Method | Center-Weighted Average Metering, Multi-Zone Metering, Spot Metering |
Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority Compensation: -3 EV to +3 EV (in 1/3 EV Steps) |
White Balance Modes | Auto, Flash, Fluorescent, Incandescent, Manual, Overcast, Shade |
Flash | |
Flash Modes | Flash On |
Built-in Flash | Yes |
Max Sync Speed | 1 / 180 Second |
External Flash Connection | Hot Shoe |
Performance | |
Connectivity | AV Output USB 2.0 |
Power | |
Battery | 1 x BP-21 Rechargeable Lithium-Ion Battery Pack |
AC Power Adapter | SAC-4 (Optional) |
Physical | |
Dimensions (W x H x D) | 5.7 x 4.4 x 3.1" / 14.5 x 11.2 x 7.9 cm |
Weight | 24.7 oz / 700.2 g Without batteries and memory card |
