Product Description

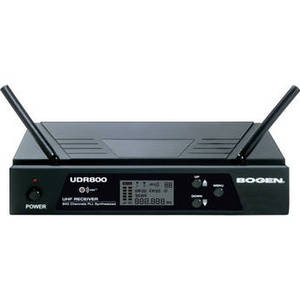

The Bogen UDR800 UHF Wireless Microphone Receiver is used in the UDMS800 wireless microphone systems. The receiver operates on the reliable UHF frequency band, and features up to 800 user selectable frequencies for professional level stability and control. Bogen's DigiTRU Diversity reception minimizes RF noise and frequency drops. ASC auto-sync establishes quick remote channel syncing between the transmitter and receiver, and the rear panel features both microphone and line level outputs.
| Type | Dual conversion super heterodyne with Digi-True Diversity (dual antennas with optimum reception selected) |
| Selectivity | 60dB, normal +/- 75kHz offset |
| Image Rejection | -70dB, minimum |
| Sensitivity | -107dBm, normal |
| Spurious Rejection | 65dB, normal |
| Mute | Adjustable (-65dBm to -95dBm), tone squelch 40kHz |
| Controls | Power On/Off push switch, volume line level pot,menu, up/downbuttons |
| LCD | Mute, AF/RF bars, A/B diversity, IR, GR/CH, mute level,scan, frequency |
| LED | Power On |
| Audio Outputs | Line out (unbalanced): adjustable line audio output Mic out (balanced): Fixed mic level output |
| Output Impedance | Unbalanced: 1kΩ and Balanced: for 600Ω loads |
| Antennas | Dual permanently attached swivel antennas |
| Construction | ABS plastic |
| Power Supply | 22V DC/0.4A |
| Dimensions (WxHxD) | 7.95 x 1.61 x 5.11" (20.2 x 4.1 x 13cm) |
| Weight | 1 lb (454g) |
