1-Channel Wireless Instrument System (A / 516 - 558 MHz)
Product Description

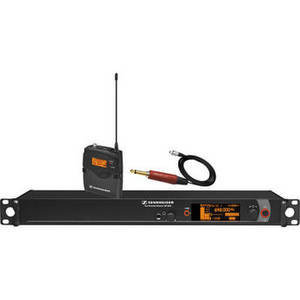

The 1-Channel Wireless Instrument System (A / 516 - 558 MHz) by Sennheiser includes the SK 2000-XP bodypack transmitter, EM 2000 rack-mount receiver and CL14 1/4" instrument cable allowing you to connect line instruments such as electric guitars, violins and more. The EM 2000 receiver uses true diversity technology for high-quality performance with five windows of up to 75 MHz in the UHF range. This transmitter can be synchronized via infrared or connected to your network via Ethernet for remote monitoring and control with Sennheiser Wireless System Manager software. The SK 2000-XP transmitter uses four RF output powers (10, 30, 50, or 100 mW) for extended transmission ranges and more channels per frequency range. The optional rechargeable batteries can be charged inside of the unit with the external charging contacts.
| SK 2000-XP | |
| Modulation | FM |
| RF Frequency Range | 516 - 866 MHz |
| Carrier Frequency | 3,000 max. |
| Presets | 64 max. |
| Switching Bandwidth | 75 MHz max. |
| RF Output Power | Selectable: 10, 30, 50, or 100 mW |
| Nominal Deviation | ± 24 kHz |
| Peak Deviation | ± 48 kHz |
| Compander | HDX |
| Frequency Response | Line: 25 - 18,000 Hz Mic: 80 - 18,000 Hz |
| Total Harmonic Distortion (THD) | < 0.9% |
| Signal to Noise Ratio | > 120 dB(A) (@ 1 mV, peak deviation) |
| Compliant Standards | CE FCC IC |
| Audio Input | Sennheiser (3-pin) socket |
| Power Supply | 2 x 1.5 V (AA) |
| Operating Time | Approximately 8 hours |
| Maximum Input Voltage | 3 Veff (mic + line) |
| Input Impedance | Mic: 40 kΩ Line: 1 MΩ |
| Dimensions | 3.22 x 2.51 x 0.94" (82 x 64 x 24mm) |
| Weight | 5.64 oz (160 g) |
| EM 2000 | |
| RF Frequency Range | 516 - 865 MHz |
| Carrier Frequency | 3000 max. |
| Presets | 64 max. |
| Switching Bandwidth | 75 MHz max. |
| Peak Deviation | +/- 48 kHz |
| Squelch Threshold | Off 5 - 25 dBμV |
| Intermodulation Spacing | ≥ 75 dB |
| Antenna Connector | 2 BNC (50 ohm) |
| Cascadable | 2 BNC (50 OHM) |
| Gain | 0 dB to ± 0.5 dB |
| Compander | HDX |
| Frequency Response | 25 to 18,000 Hz |
| Signal to Noise Ratio | > 120 dB(A) |
| Total Harmonic Distortion | < 0.9 % |
| Audio Output | XLR-3 + 6,3 mm |
| Audio Output Level | +18 dBu max |
| Booster | 12 V DC 2 x 200 mA |
| Operating Temperature | -10 °C to +55 °C |
| Power Supply | 100 - 240 V AC, 50/60 Hz |
| Current Consumption | 0.2 A max. |
| Dimensions | 8.54 x 19.01 x 1.69" (217 x 483 x 430mm) |
| Weight | 5.73 lb (2.59 kg) |
