Product Description

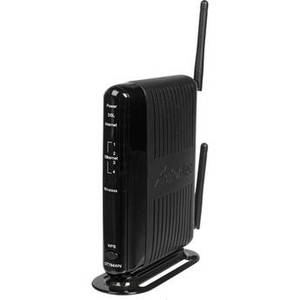

The Wireless N ADSL Modem Router from Actiontec is a DSL modem with a built-in 802.11n wireless router. It is compatible with ISPs that provide ADSL service, and gives you an all-in-one solution to connect to the Internet and share the connection among the computers in your home.
The router features four LAN ports for wired device connectivity. Its 802.11n Wi-Fi signal is backwards compatible with 802.11b and 802.11g devices. A built-in firewall protects your computer against attacks that can originate on the Internet, and support for wireless encryption protects your network from attacks from computers within its wireless coverage range.
The router automatically configures itself -- just connect it to your network and open a web browser. It supports TR-069 and remote management, making it a great option for Internet Service Providers -- these technologies allow technicians to assist end-users with troubleshooting. The router can be configured by Windows and Mac systems alike.
The router features four LAN ports for wired device connectivity. Its 802.11n Wi-Fi signal is backwards compatible with 802.11b and 802.11g devices. A built-in firewall protects your computer against attacks that can originate on the Internet, and support for wireless encryption protects your network from attacks from computers within its wireless coverage range.
The router automatically configures itself -- just connect it to your network and open a web browser. It supports TR-069 and remote management, making it a great option for Internet Service Providers -- these technologies allow technicians to assist end-users with troubleshooting. The router can be configured by Windows and Mac systems alike.
| Base Station | |
| Standards | 802.11n, 802.11b, 802.11g, ADSL, ADSL 2, ADSL 2+ |
| Network Protocol | TCP/IP |
| Data Rate | 802.11n: 150Mbps 802.11g: 54Mbps 802.11b: 11Mbps |
| Frequency Range | 2.4GHz |
| Channel Support | 11 |
| Wireless | External RADIUS Server Support Multiple SSID WPS WMM, WMM PowerSave (available upon request) |
| Security | Wi-Fi Protected Access (WPA, WPA2) TKIP & AES encryption 802.1x authentication Pre-Shared Key (PSK) MAC Address Filtering Advanced Security Firewall Stateful Packet Inspection NAT Website Blocking Web Service Blocking URL Keyword-Based Filtering Customizable Filtering Policies per Computer Internet Traffic Logging Denial of Service (DOS) Protection Demilitarized Zone (DMZ) Intrusion Detection IP Protocol Filtering |
| Remote Management | User-enable Remote Management TR069 Carrier Remote Management TR064 Local Management |
| QoS | Diffserv 802.1p/q Prioritization Random Early Detection Pass-through of WAN-side DSCPs, PHBs & Queing to LAN-side devices Prioritization via DHCP options |
| Advanced Features | DHCP Server Option DHCP Server/PPPoE Server Auto Detection DNS Server Full Bridge Device Control LAN IP & WAN IP Address Selection MAC Address Cloning Port Forwarding PPPoE Support IGMP v1, v2, v3 (available soon) MAC Address Filtering IGMP proxy and snooping |
| Antenna | 2x Removable |
| Operation Distance | Not Specified by Manufacturer |
| Transmitted Power | Not Specified by Manufacturer |
| Power Over Ethernet | None |
| Ports | 4x 10/100Mbps Ethernet LAN (RJ-45) 1x DSL (RJ-11) |
| General | |
| System Requirements | PC or Mac with web browser (IE 7, Safari, Firefox) |
| Power Requirements | DC: 12VDC, 1A |
| Dimensions (WxHxD) | 6.5 L x 6.5 W X 1.25" H |
| Weight | Not Specified by Manufacturer |
